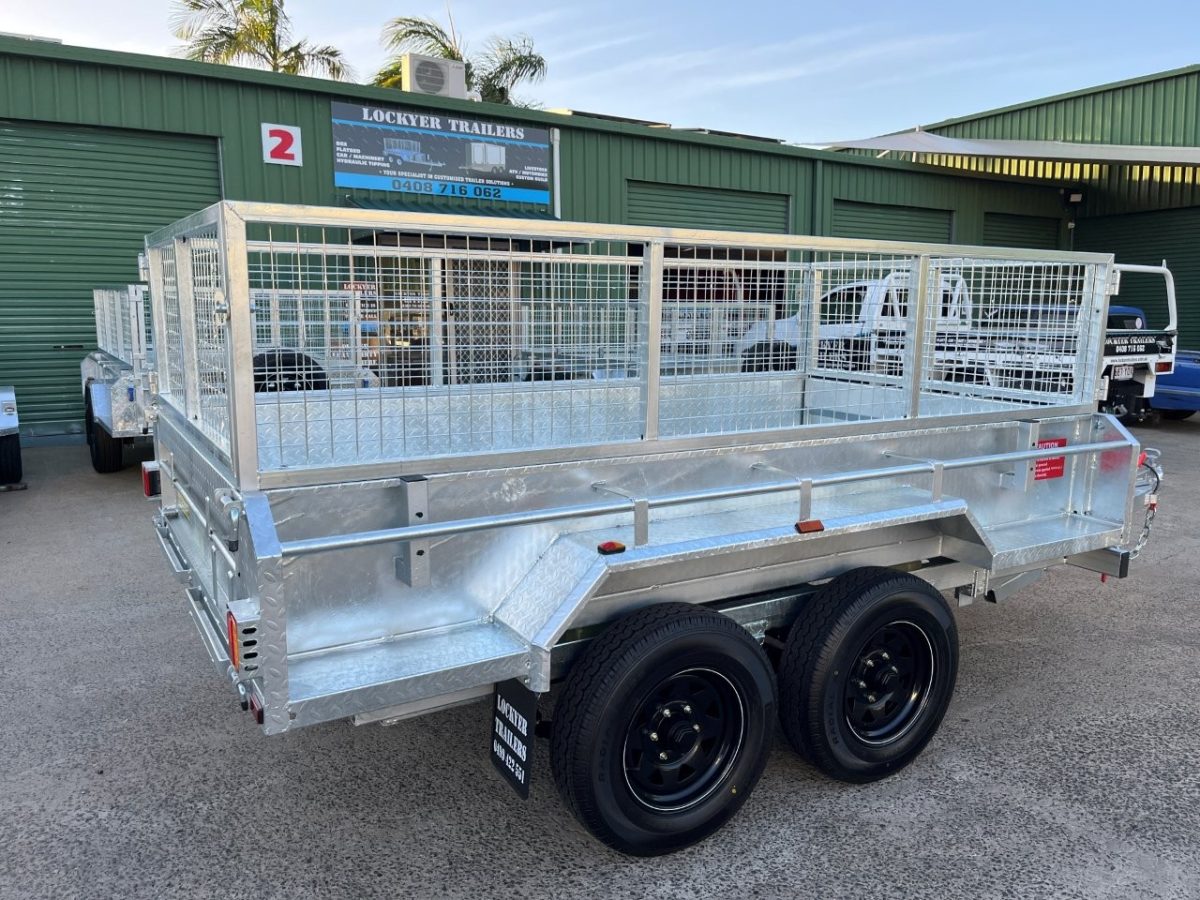

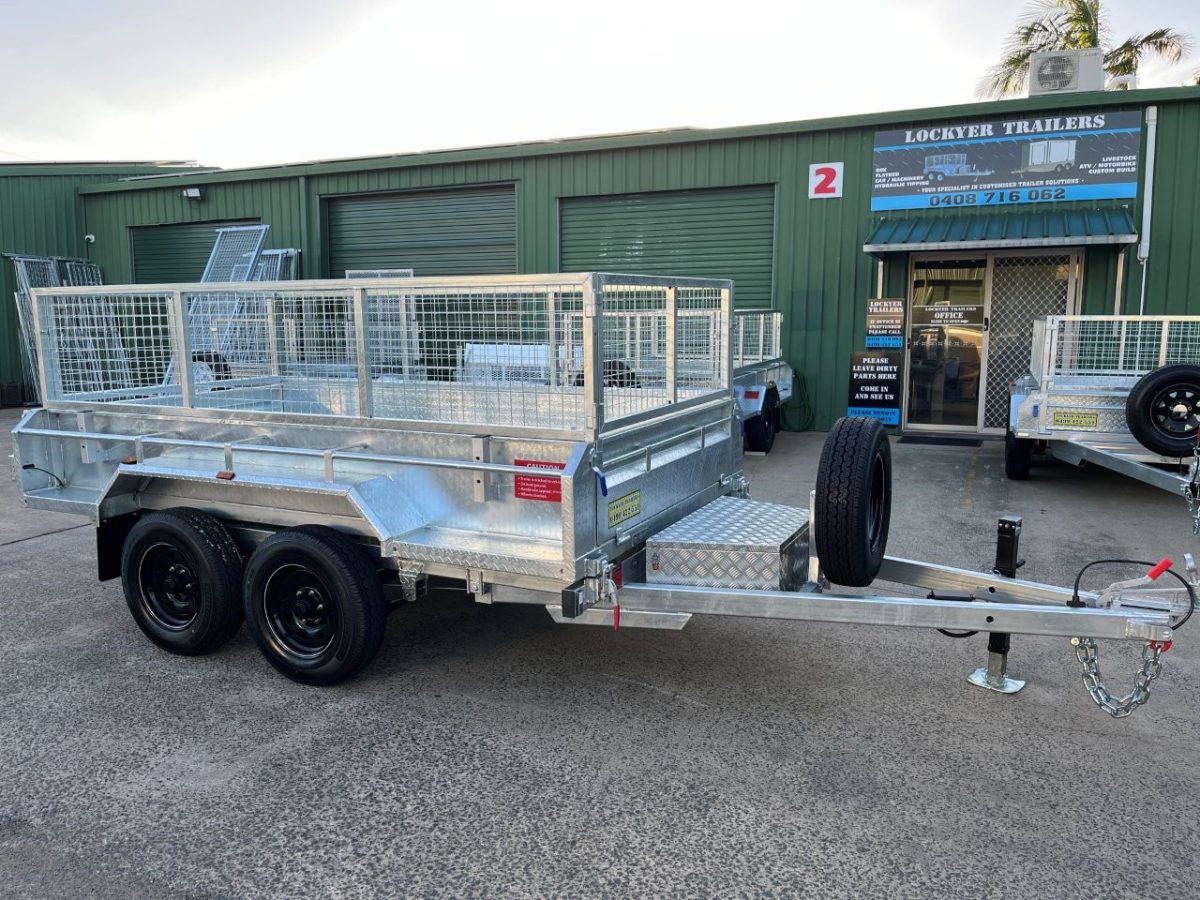

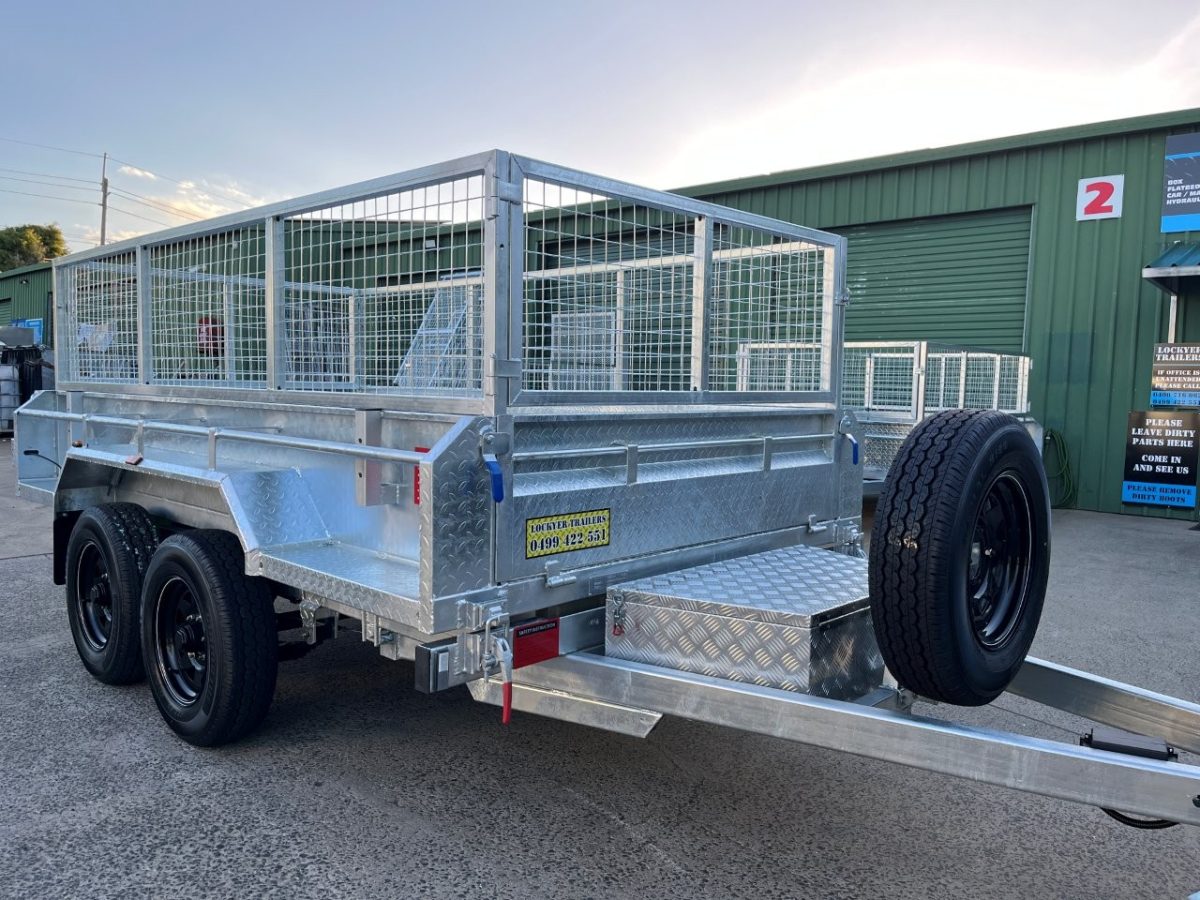

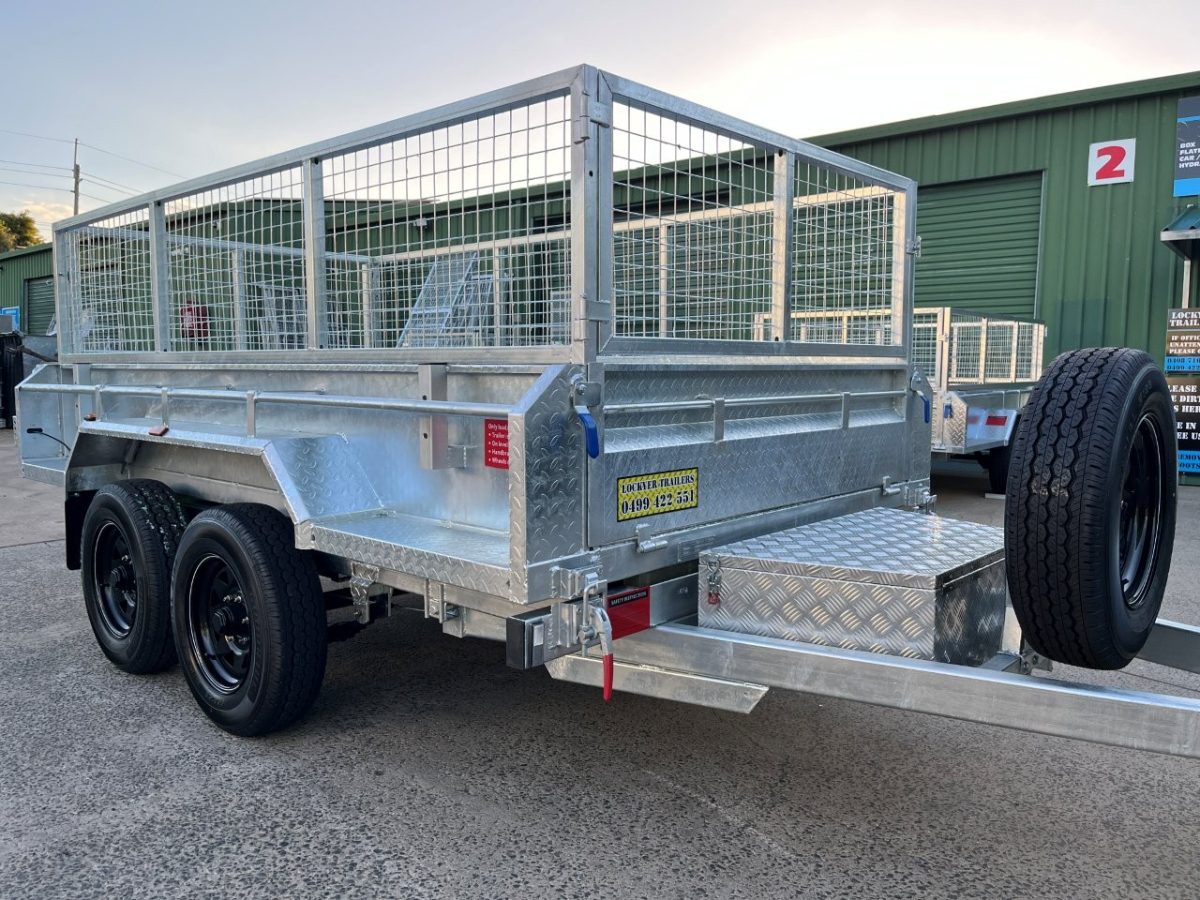

10 x 5 ft Hydraulic Tipping Box Trailer with Loading Ramps ATM 3.5 tonne

10 x 5 ft Hydraulic Tipping Box Trailer with Loading Ramps and Cage 3.5 tonne (3,500kg)

This is an outstanding NEW MODEL heavy-duty, robust tipper trailer with incredible versatility. 3.5tonne ATM with a load capacity of around 2.6tonne.

Great for moving those big loads and would suit farmers, machinery operators, tradespeople or anyone needing to move and deliver those bulky heavy loads with ultimate ease.

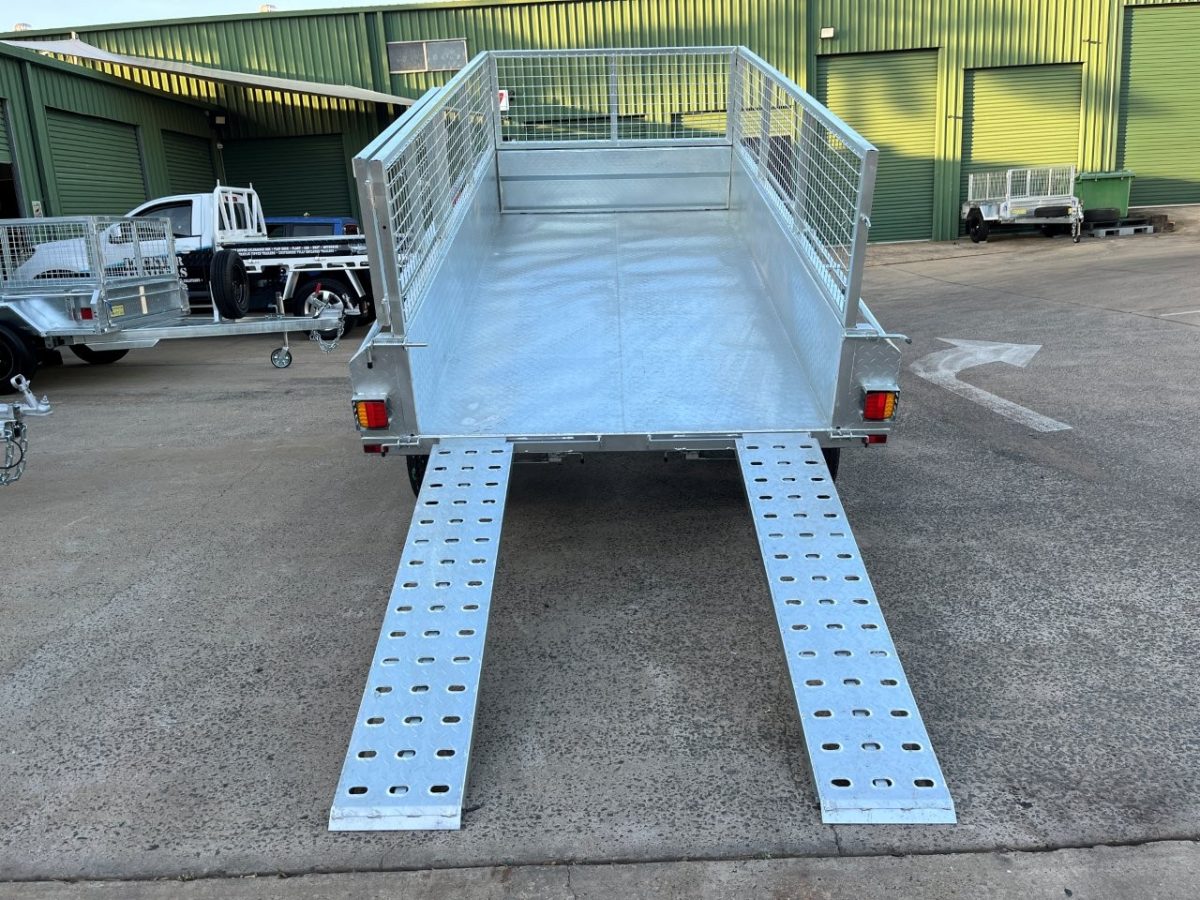

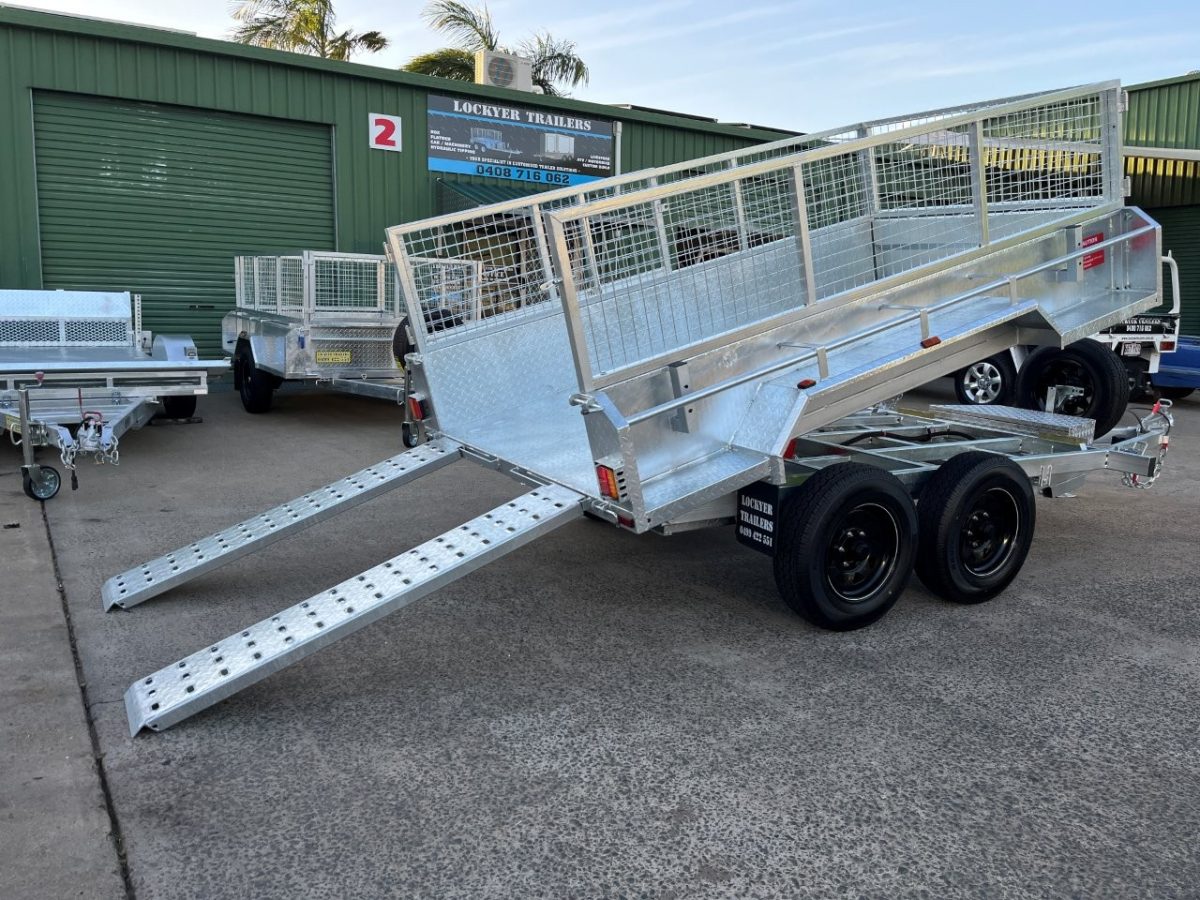

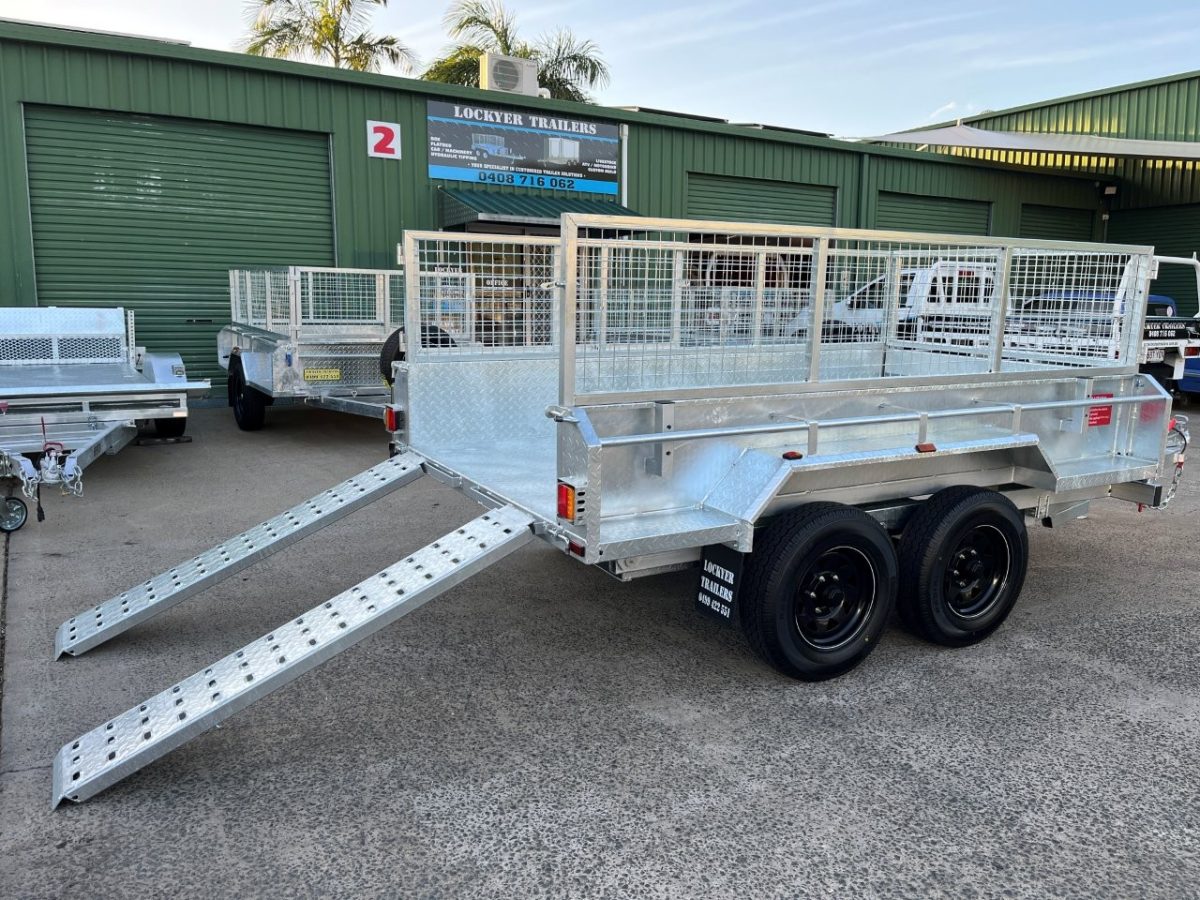

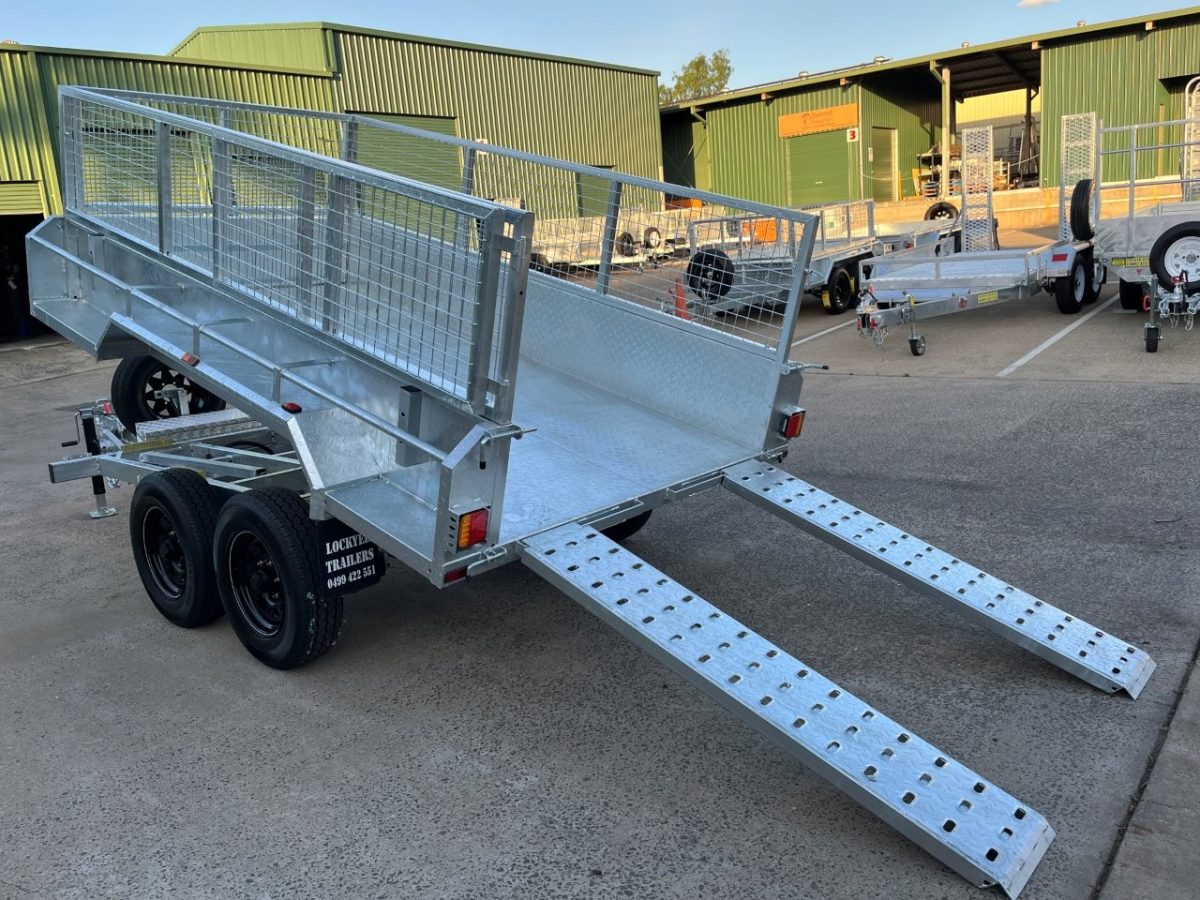

Great for loading machinery of all shapes and sizes with versatile loading ramps able to be set in many positions across the rear channels at the back of the trailer.

• On site no waiting Qld Registration available, completed on the spot
• Hot Dipped Galvanised – ATM 3500kg

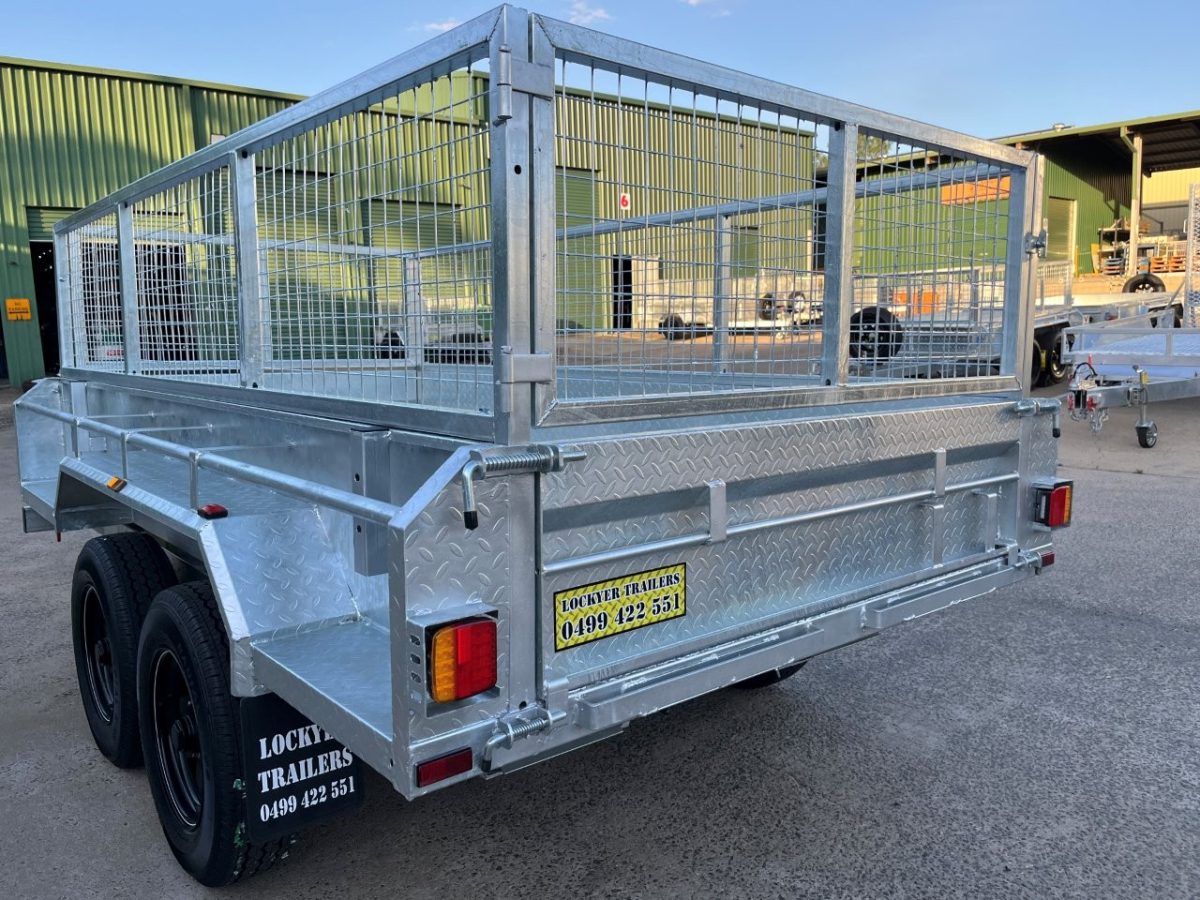

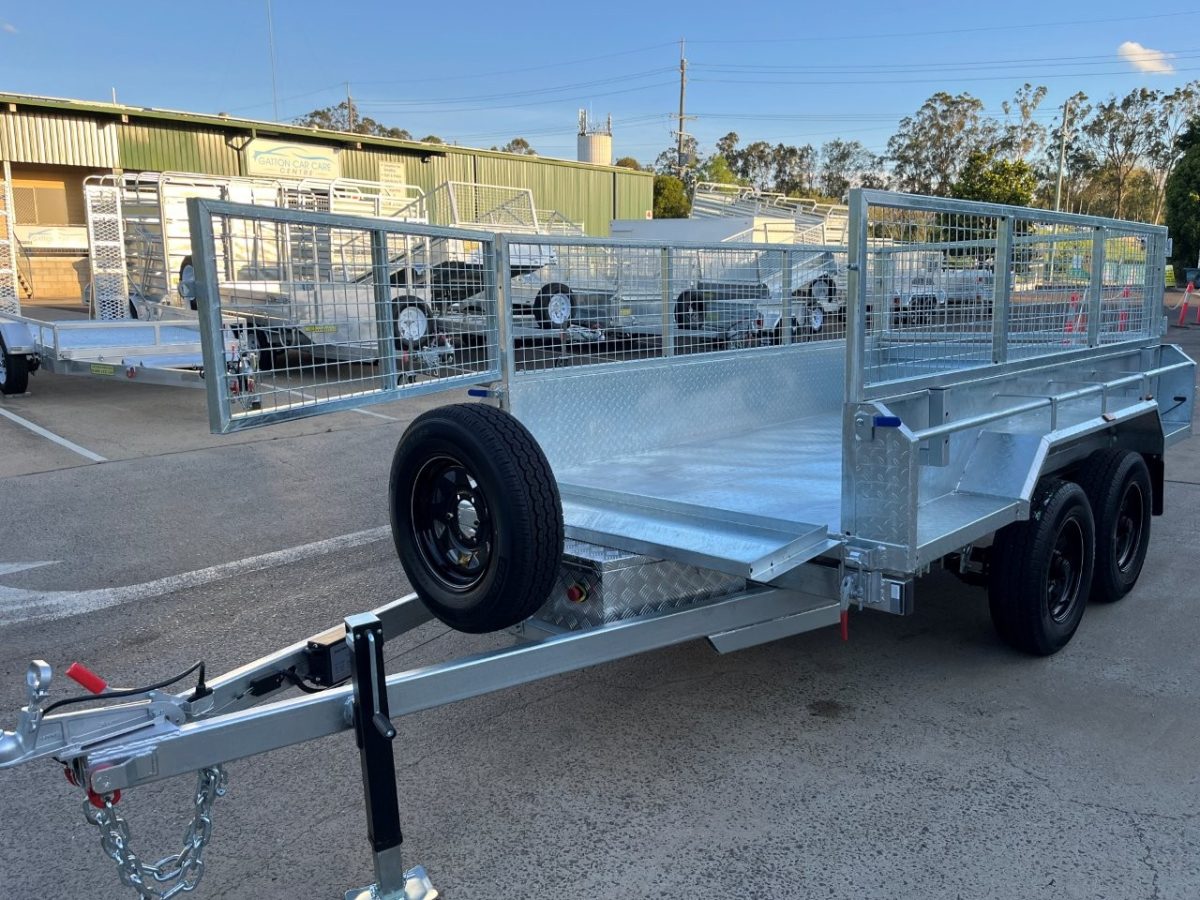

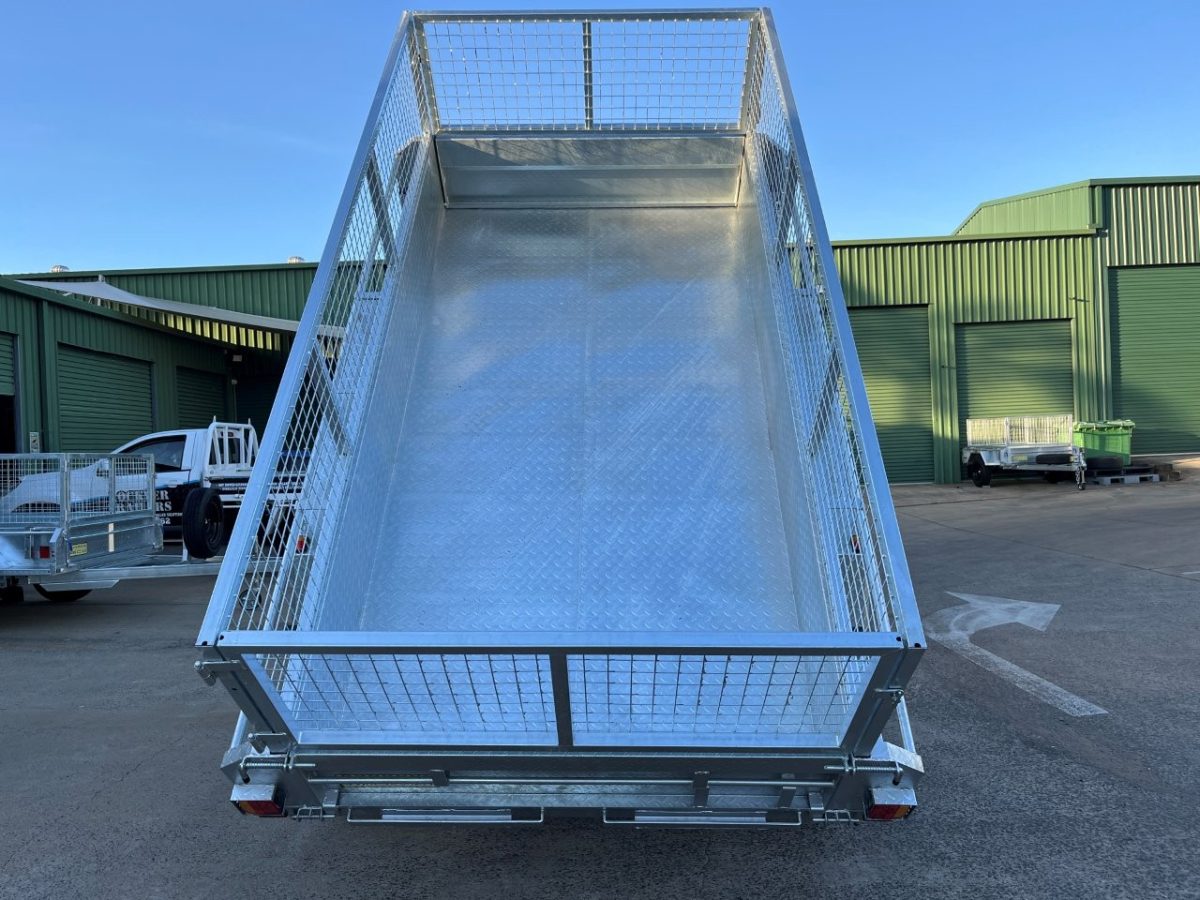

• Heavy Duty 600mm perimeter cage built with 40 x 40mm RHS and 50 x 50mm wire mesh

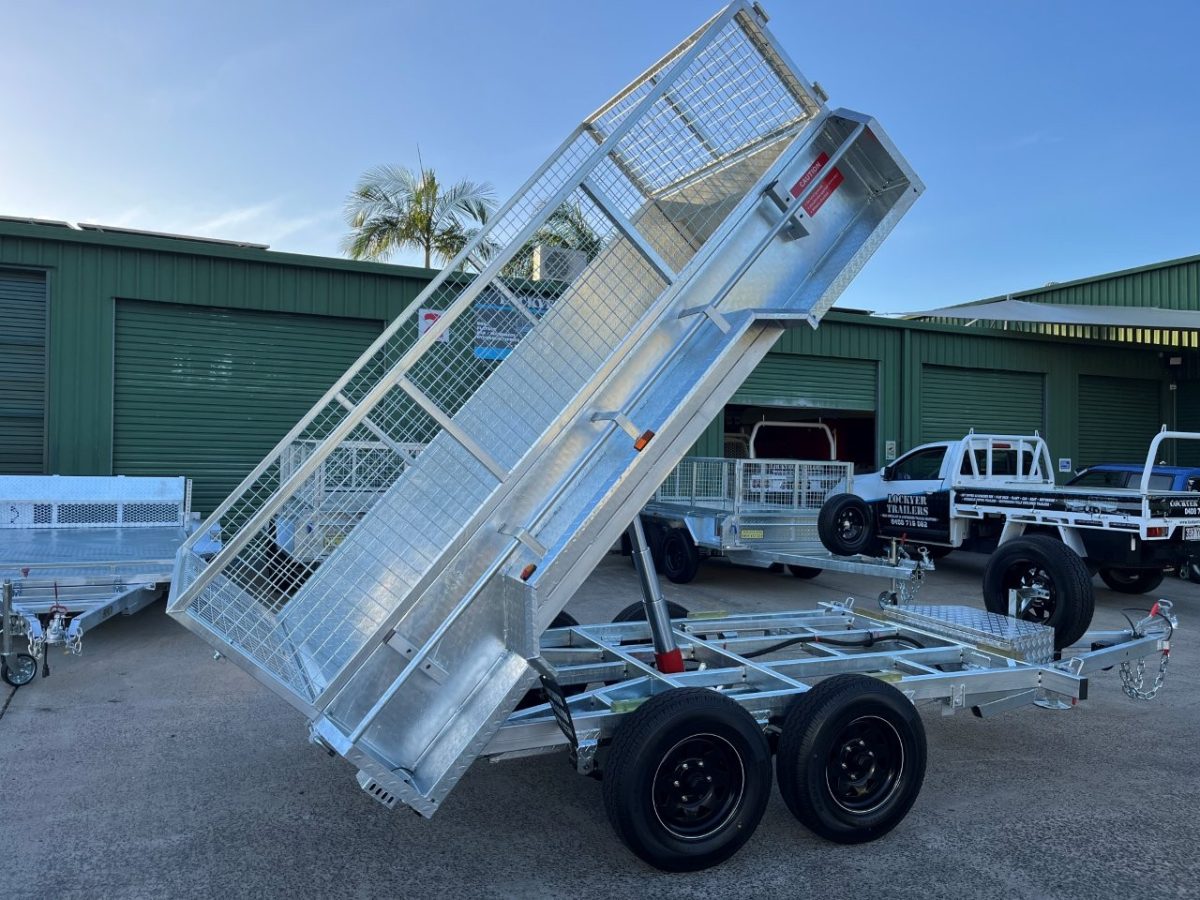

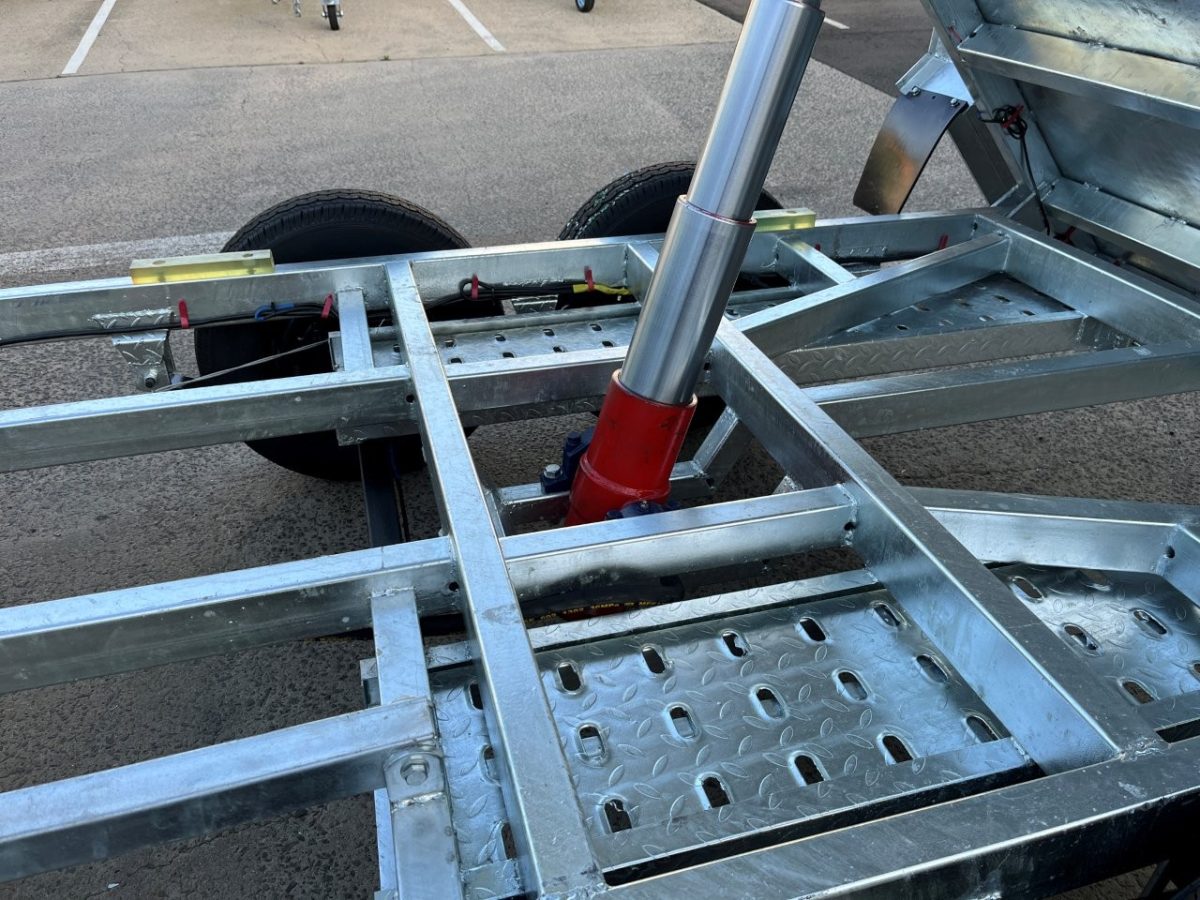

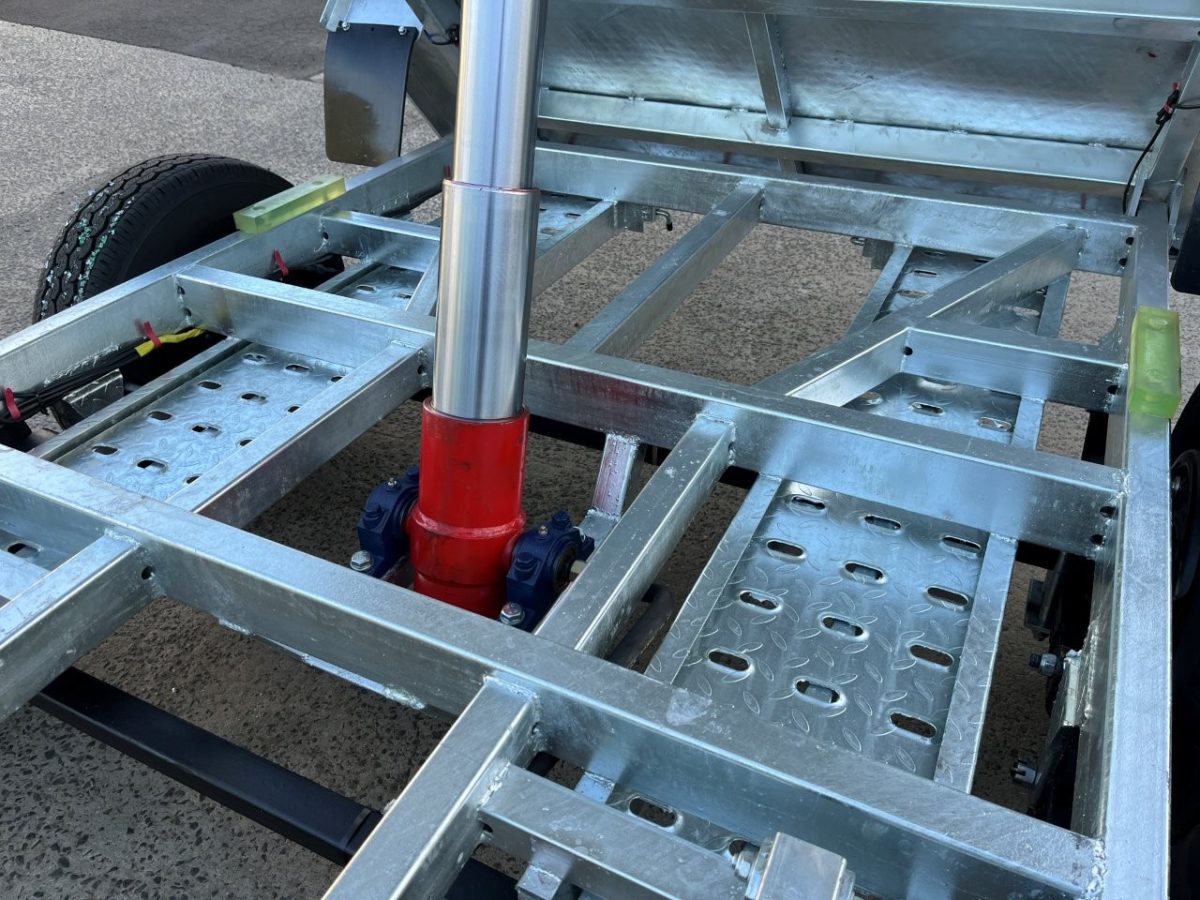

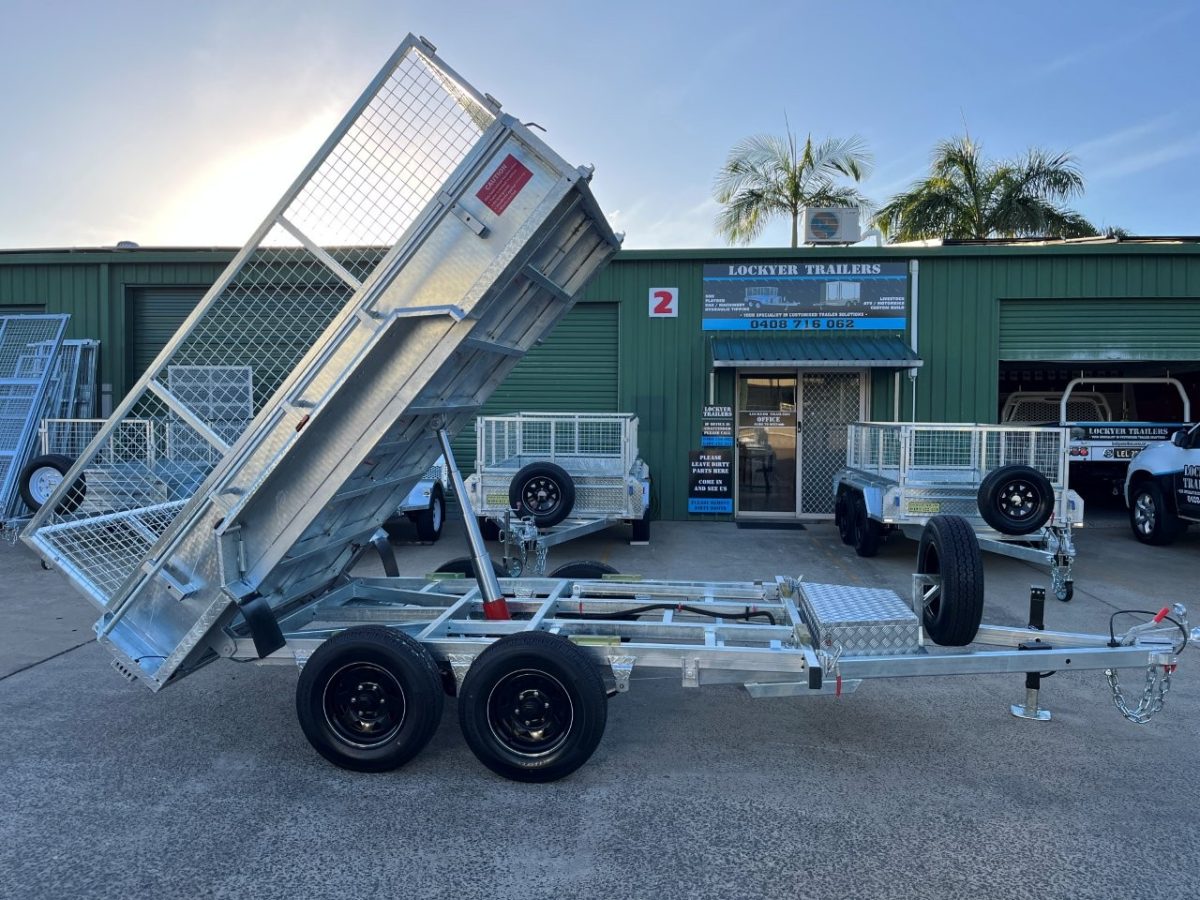

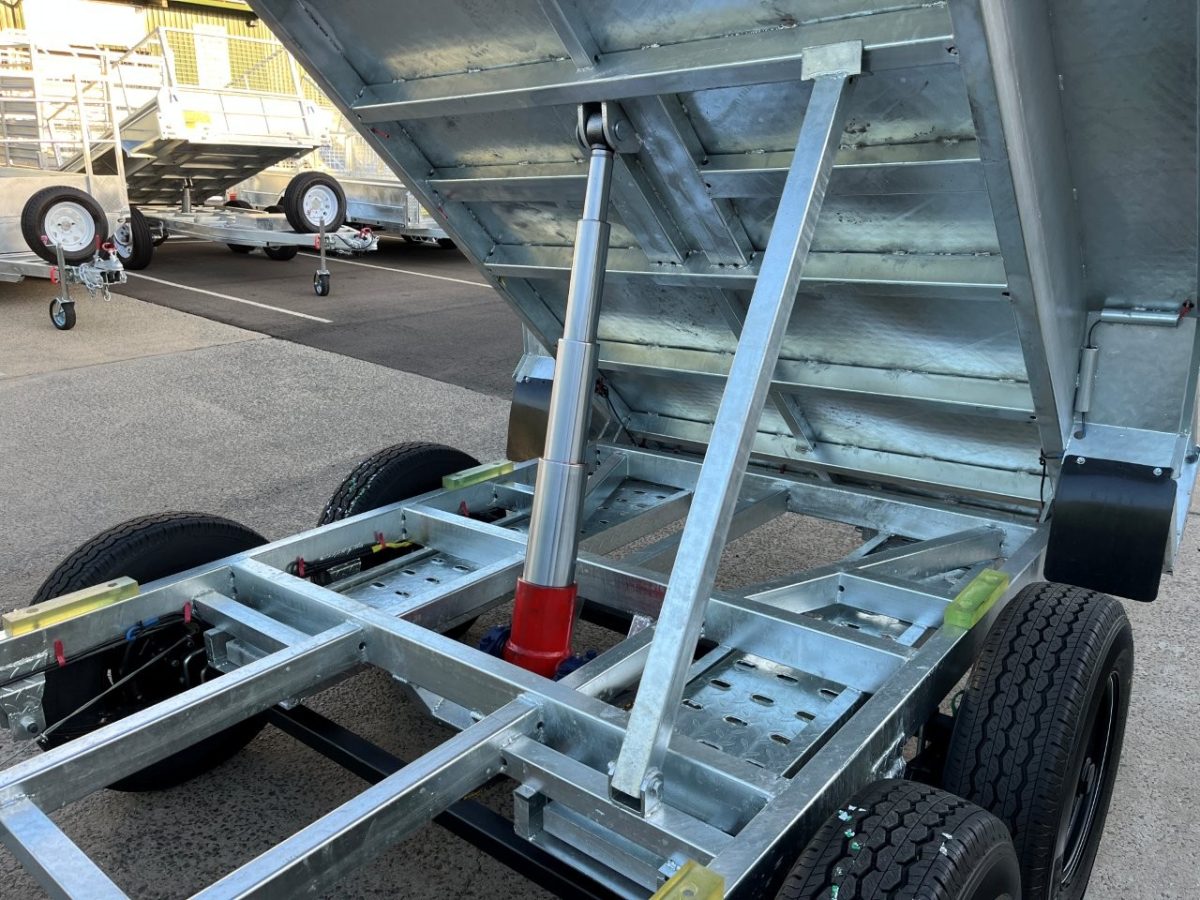

• 4-Stage Hydraulic Tipping Ram with 4000 KG Loading Capacity
• Built-in drawbar Toolbox Hydraulic Power Pack
• 400mm High Sides with 600mm Perimeter Cage
• 1900mm Ultra-long Draw Bar
• Ladder rack holders front and rear
• 15inch Brand New Sunraysia Rims and Light Truck Tyres
• 4 x 12inch Dual Axle Electric Drum Brakes
• Solid 50mm Square Axles Rated at 2000kg each

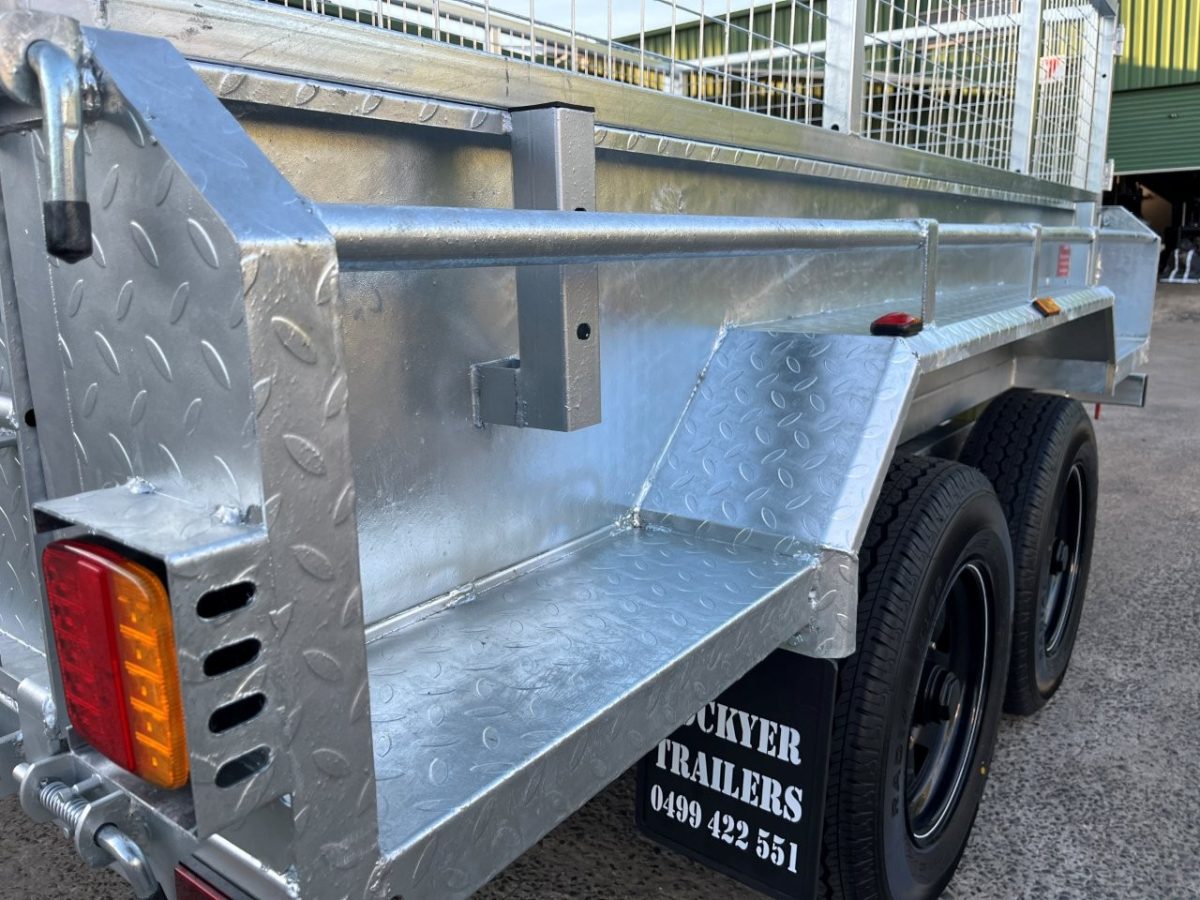

• Heavy Duty 2.5mm Checker Plate Floor & Guards

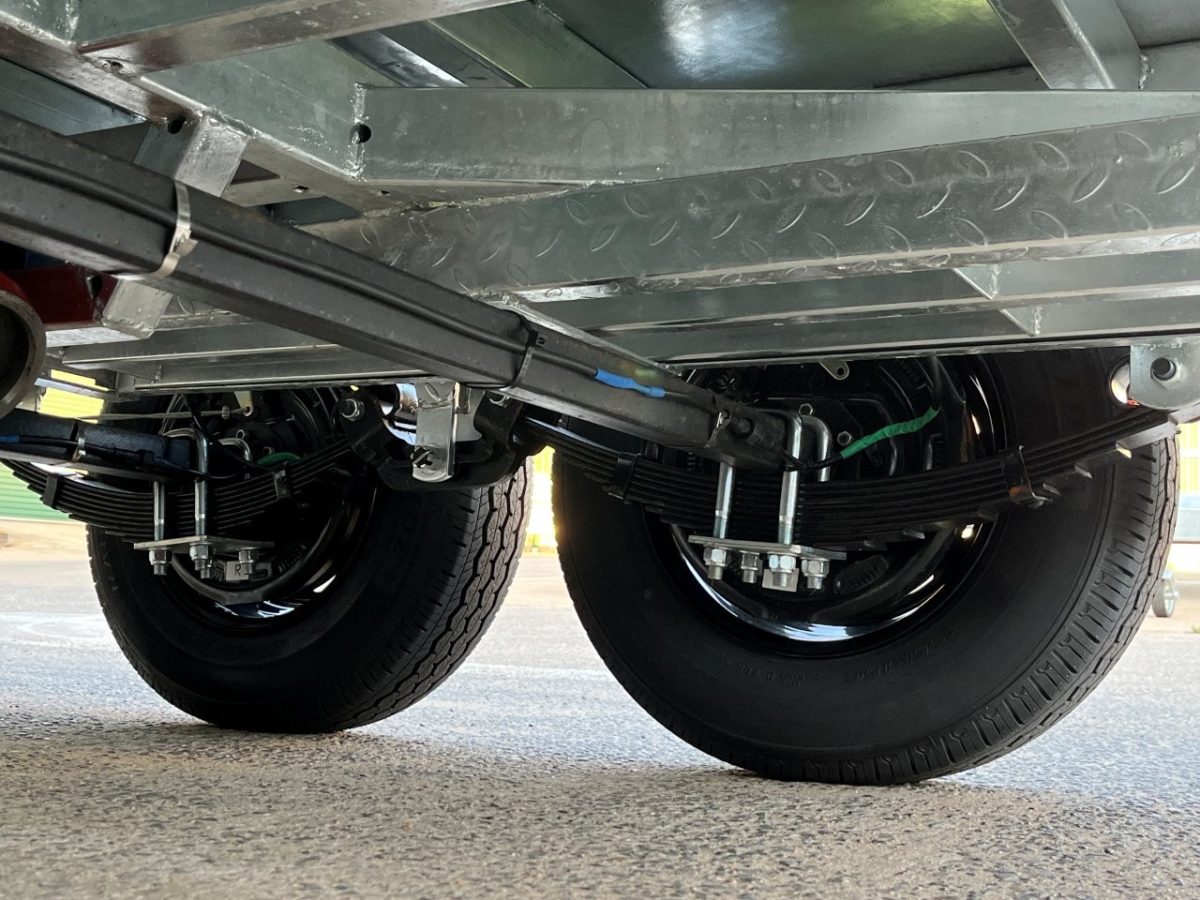

• 9 Leaf Heavy Duty Springs with Rocker Roller Suspension

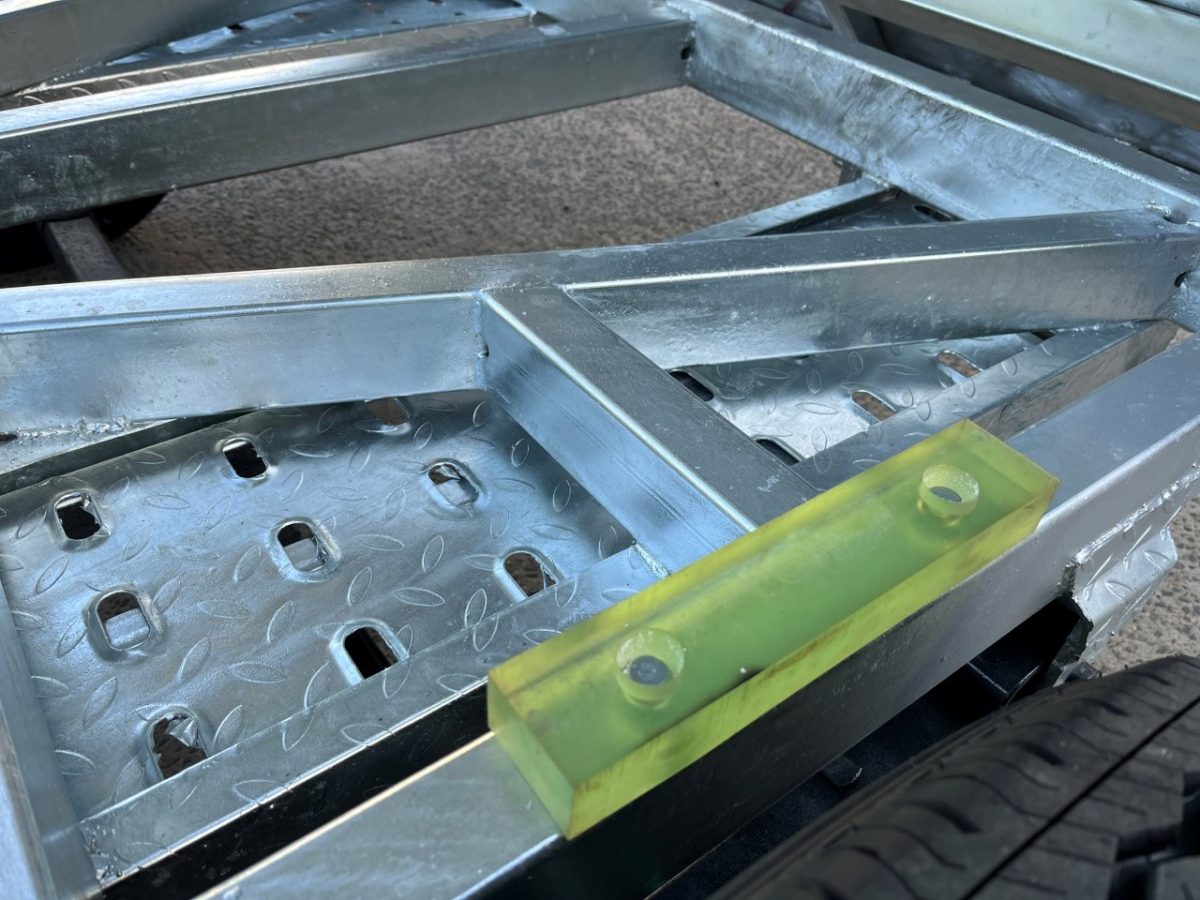

• 100mm x 50mm x 4mm Box Section Used on Drawbar and Main Chassis

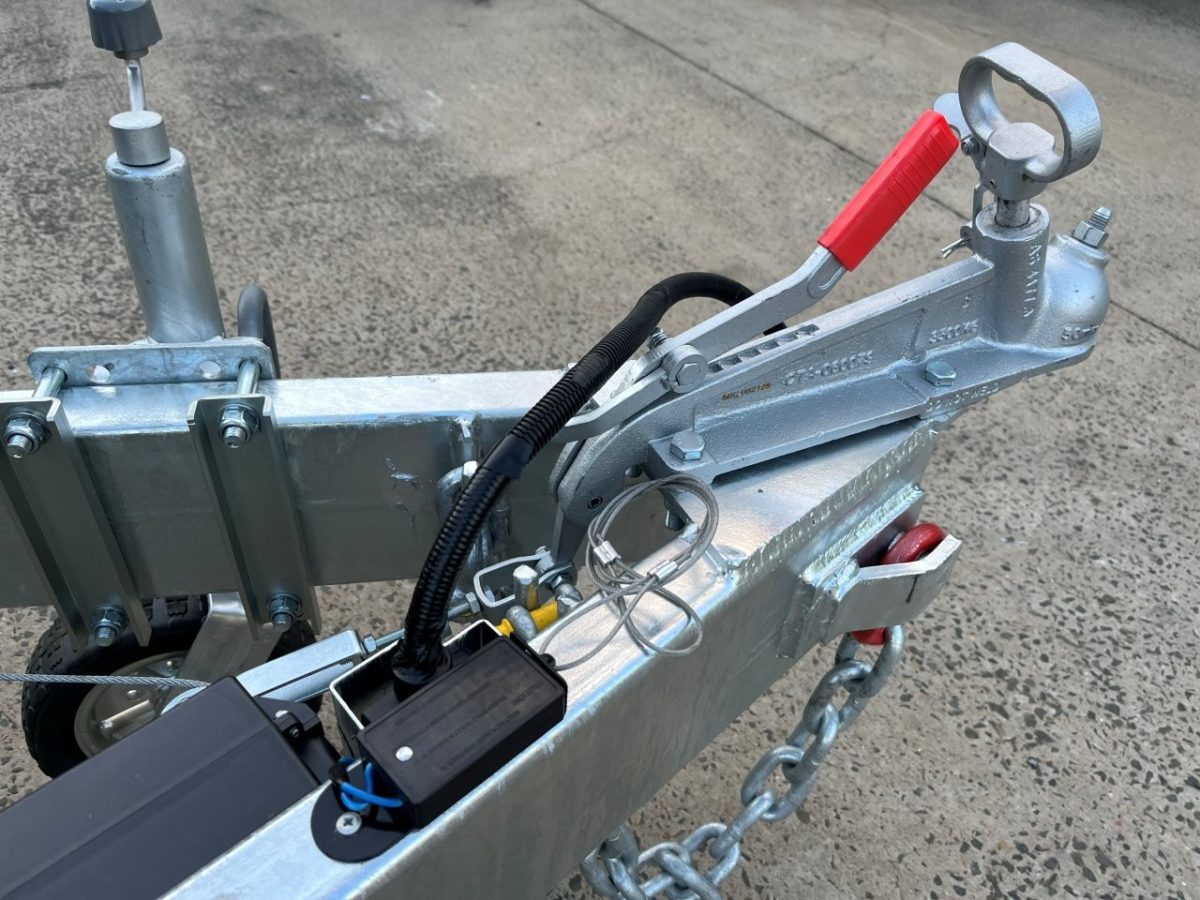

• Electric Emergency Brake-away Unit Fitted

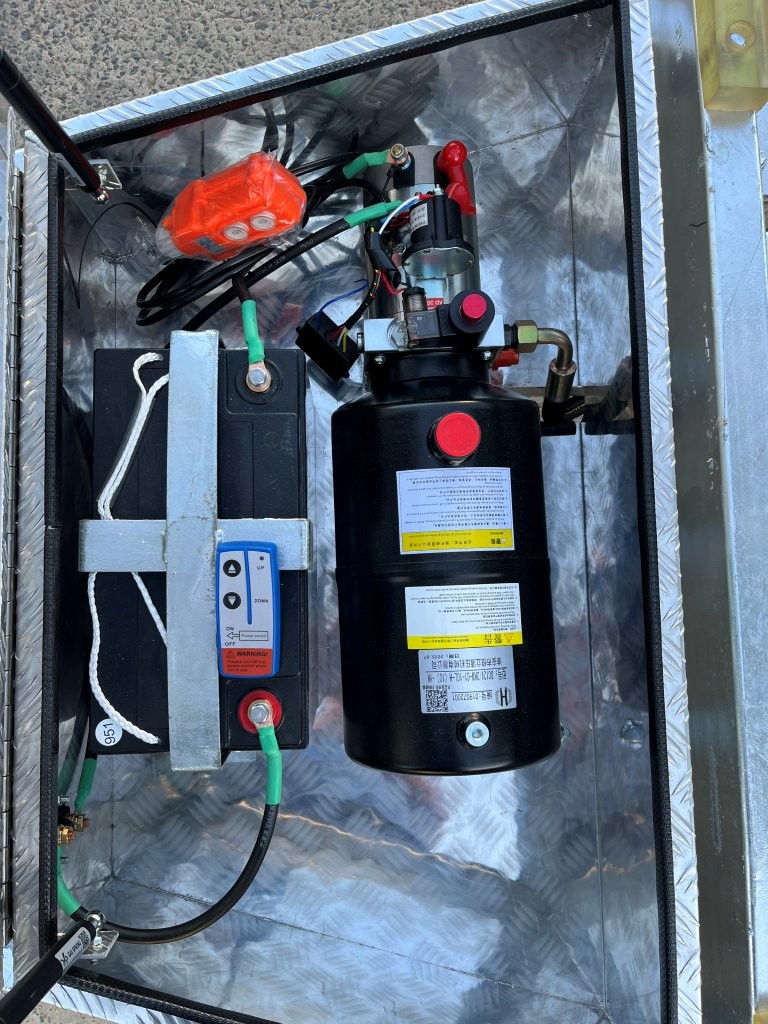

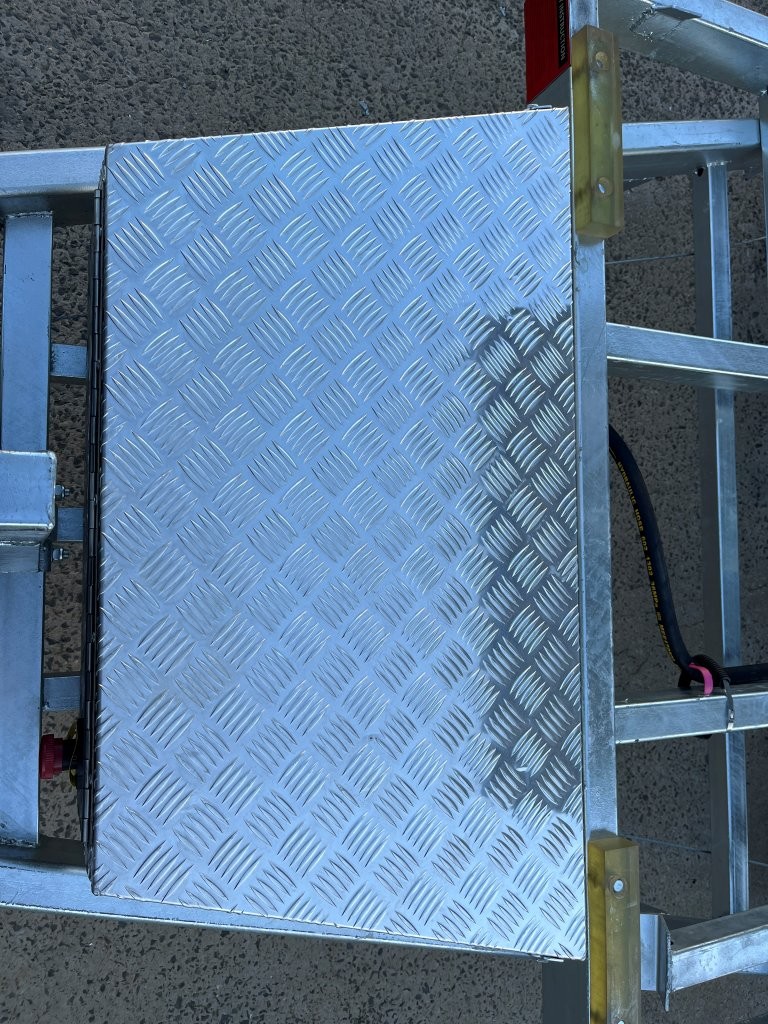

• Lockable Toolbox Houses Hydraulic System

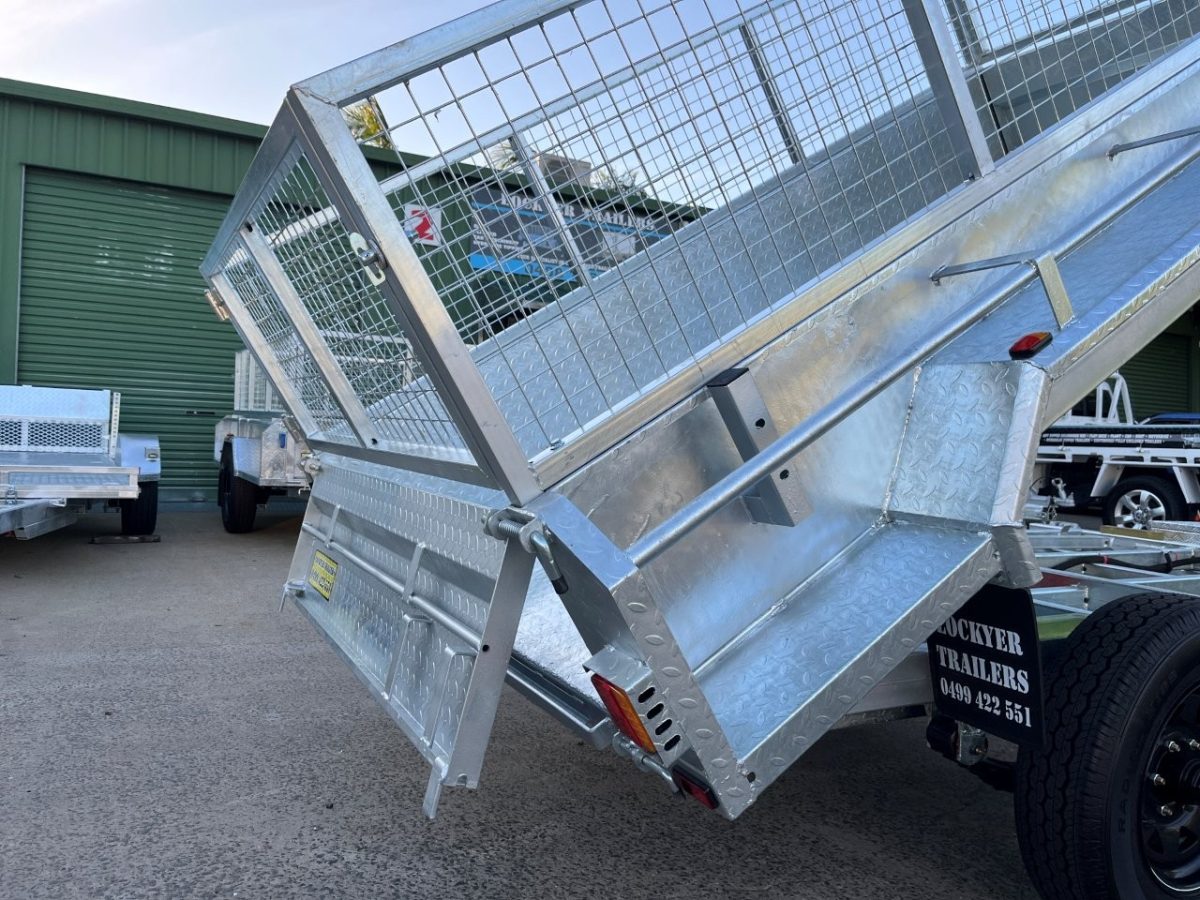

• Front and Rear Fold Down Gates. Rear Gate Top Pivot, similar action to Tip Truck
• Tie Down Rails All Around
• 12V Automotive Battery comes with Hydraulic System
• 10/30v Multivolt LED Taillights

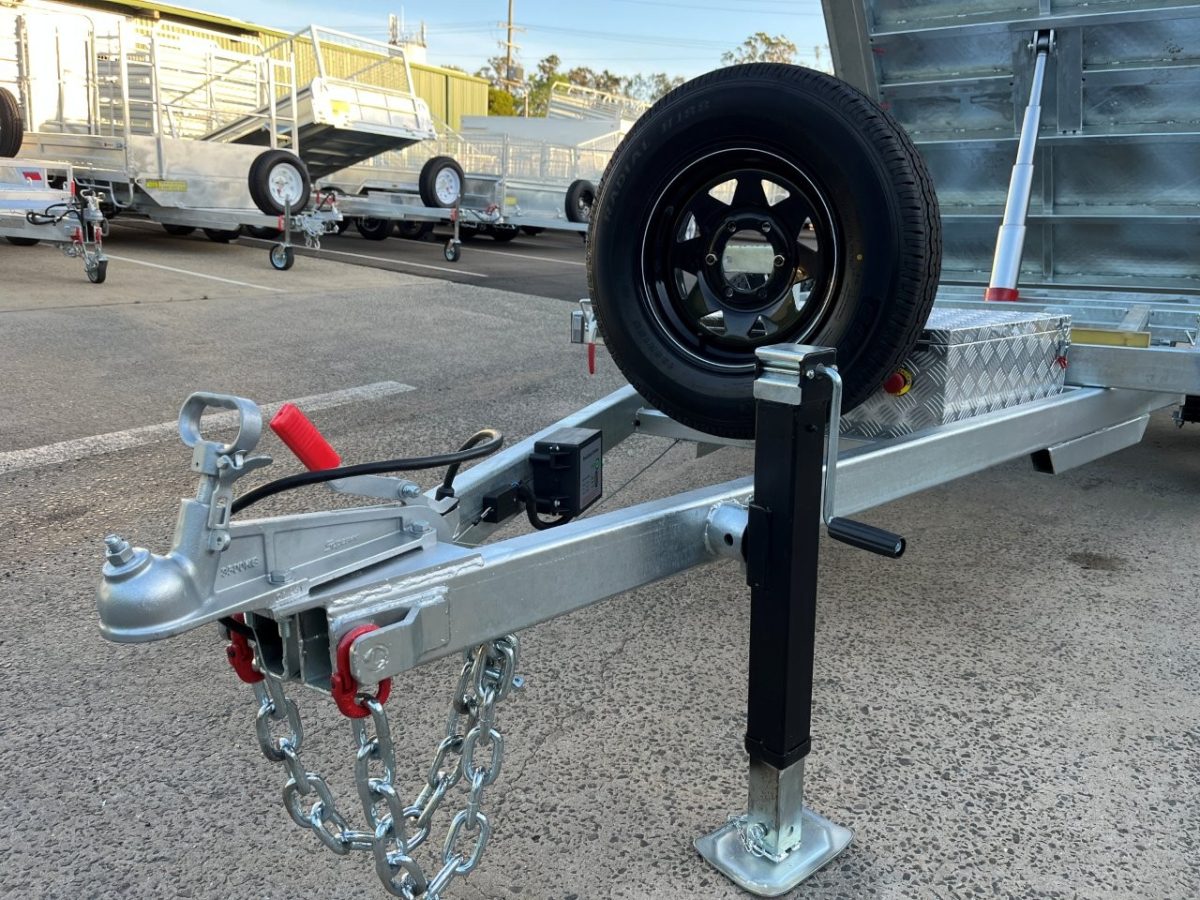

• 7000lb Heavy Duty Swing up Jockey Stand. (Some models may have alternate Jockey Wheels)
• Twin ADR Standard Heavy-Duty Double Chains & Load Rated Shackles
• Flat 7 Pin Plug

Other Hydraulic Tipping Box Trailer sizes available:

8 x 5 ft Hydraulic Tipping Box Trailer – click here to see listing
10 x 6 ft Hydraulic Tipping Box Trailer – click here to see listing
12 x 7 ft Flat Deck Hydraulic Tipping Trailer – click here to see listing
14 x 7 ft Flat Deck Hydraulic Tipping Trailer – click here to see listing

IMMEDIATE ON-SITE REGISTRATION AVAILABLE
