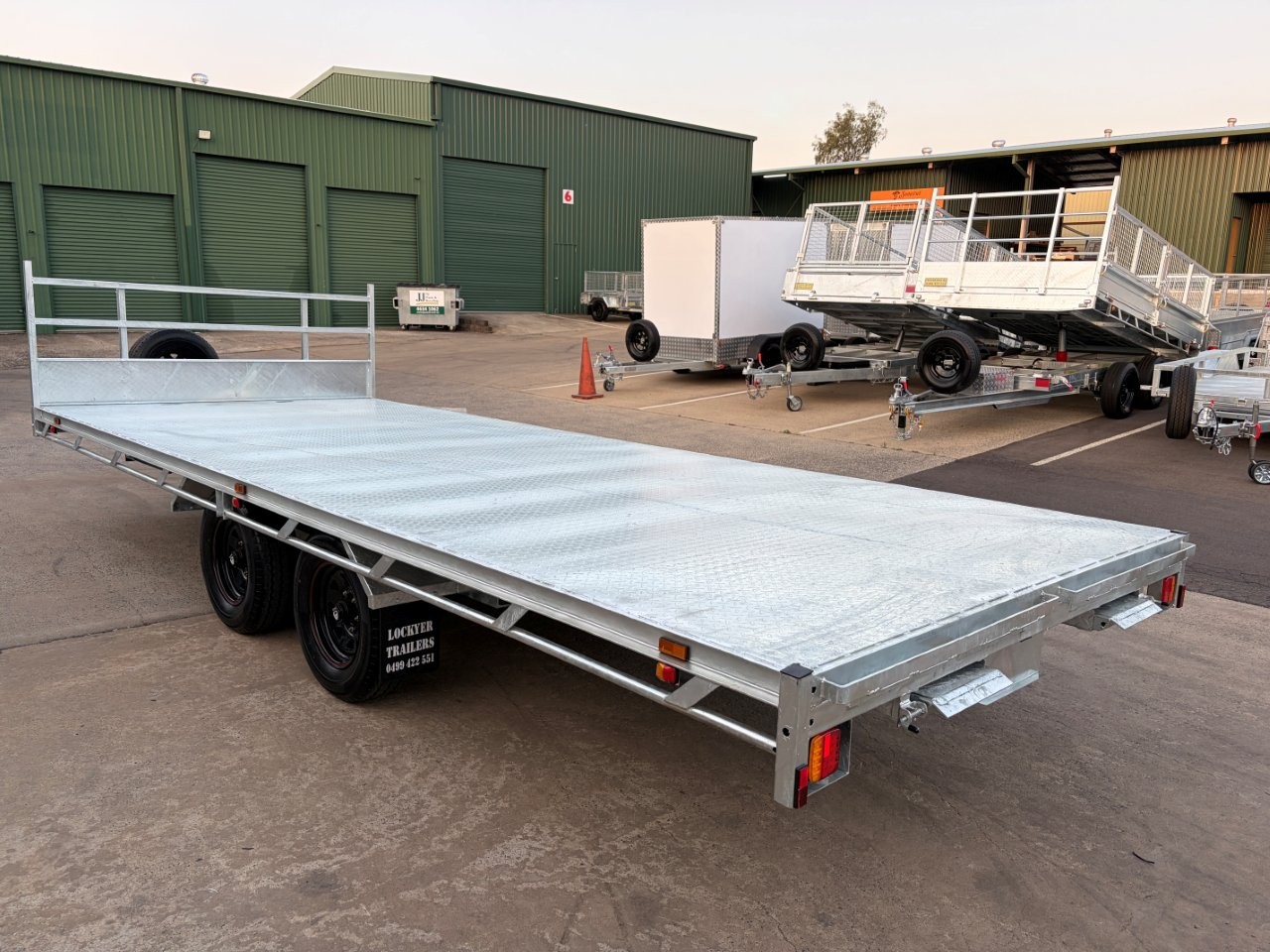

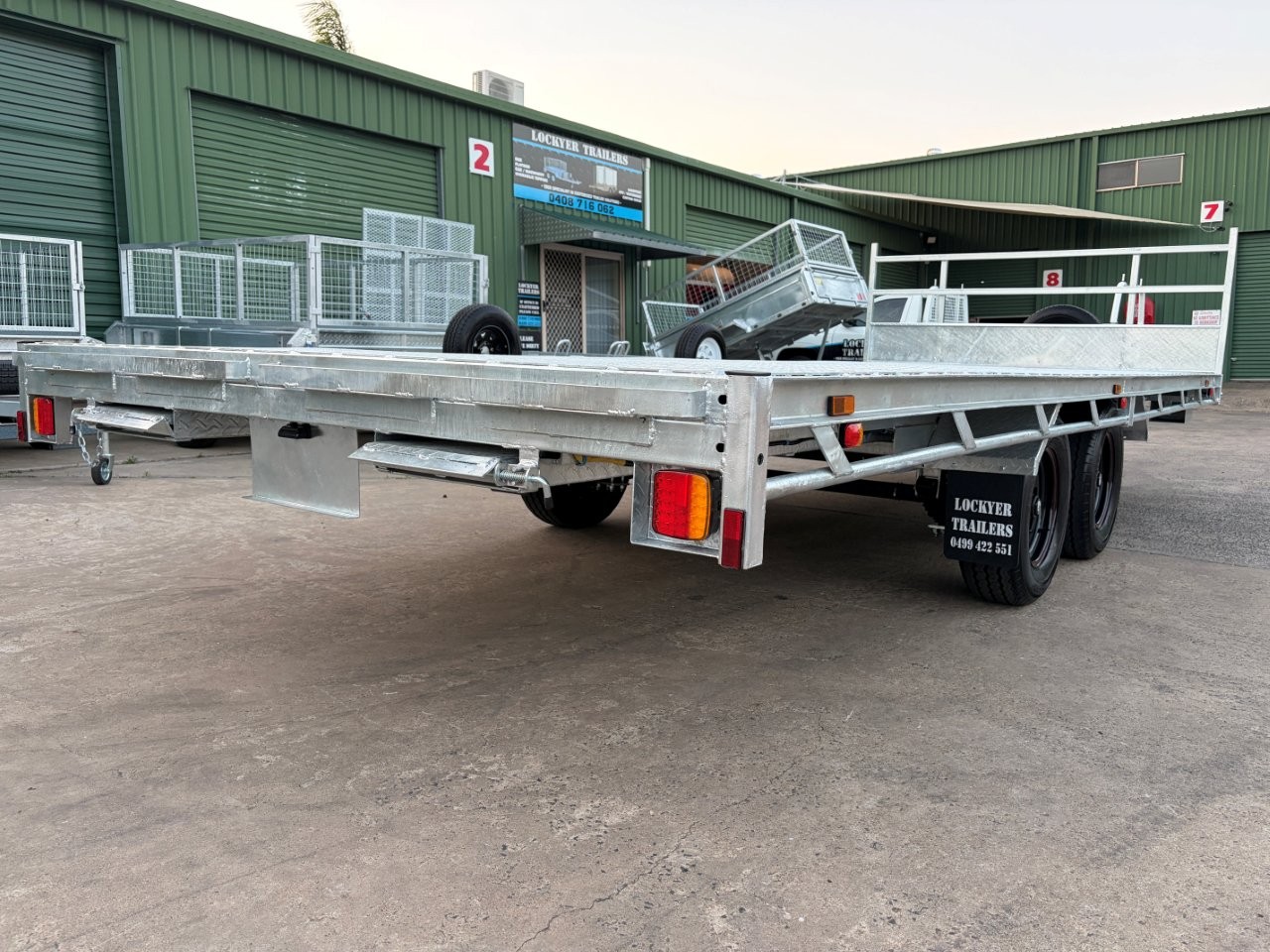

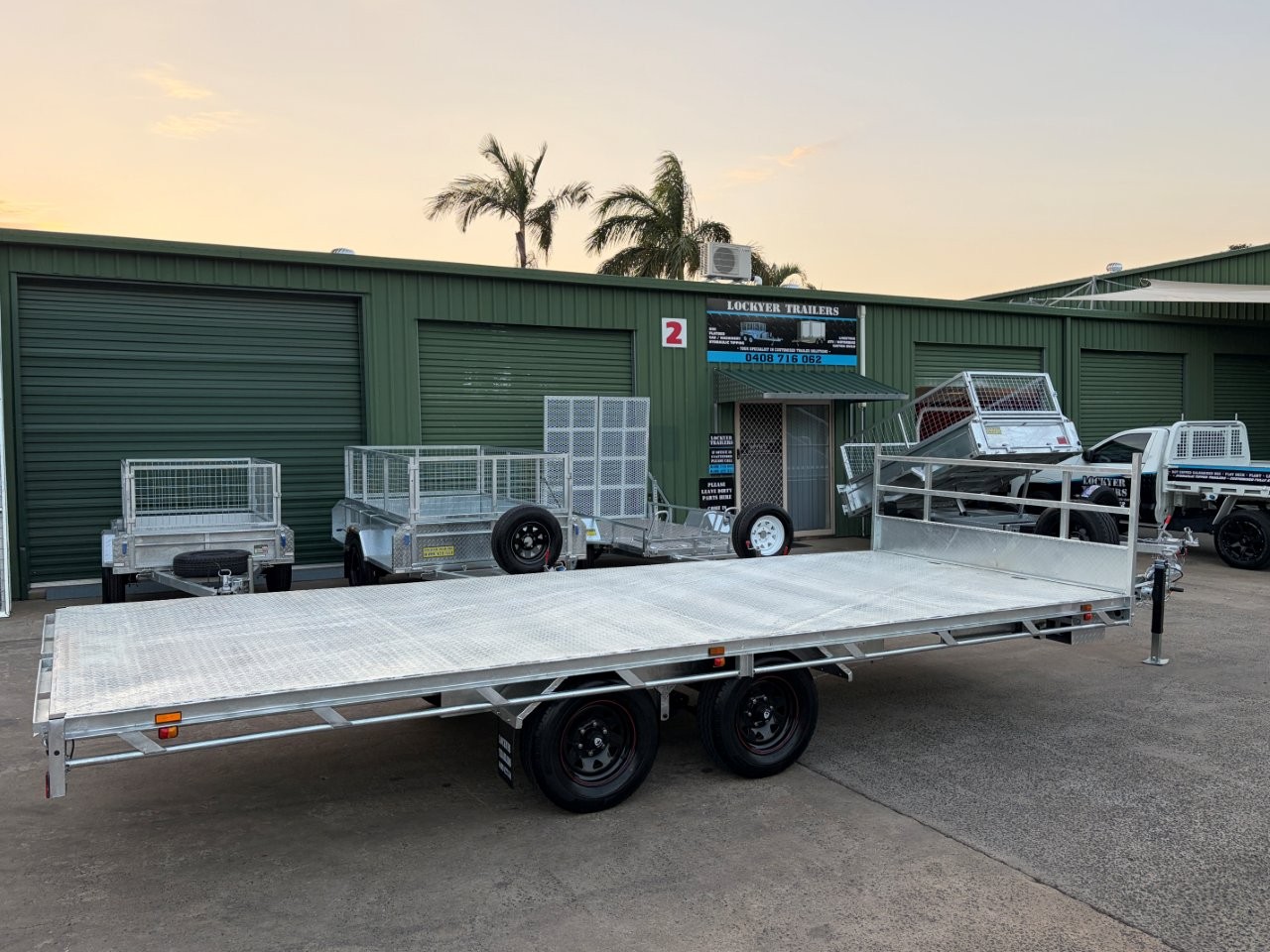

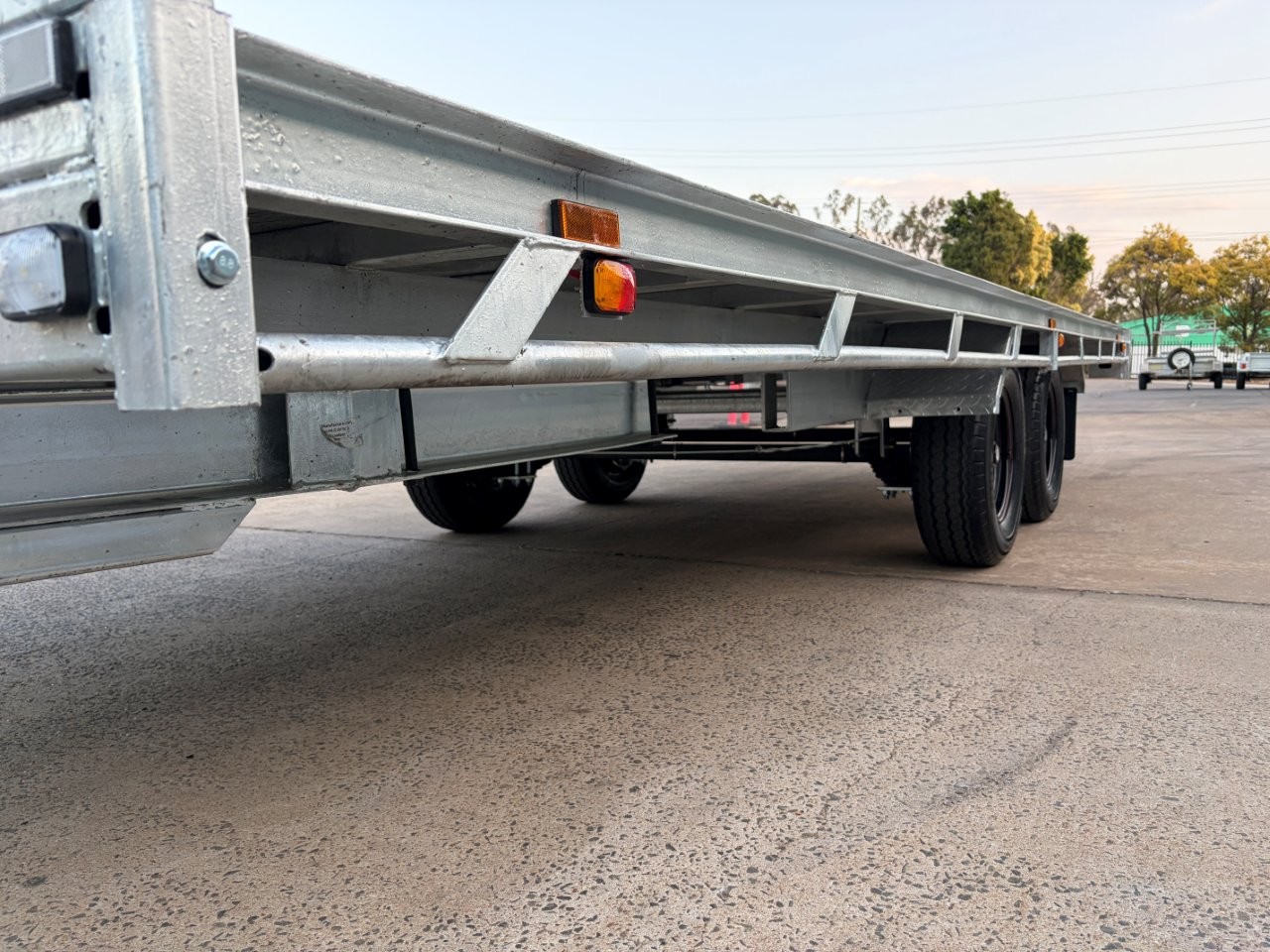

New 2026 Model 6.0m x 2.4m (20 x 8 ft) Tandem-Axle Flat Deck Trailer ATM 4.4 Tonne

6m x 2.4m (19 ft 7” x 8 ft) Extra Heavy Duty Flat Deck Trailer ATM 4.400 tonne

LIMITED AVAILABILITY

A massive flat deck trailer design with an ATM of 4400kg.

Call for Availability

This trailer includes removable 900mm Headboard and pull-out loading ramps housed underneath the trailer deck.

Trailer has been designed to incorporate an optional 12,000lb remote-controlled electric winch can be easily fitted at the front of the trailer deck. This new design trailer is a great asset for machinery operators, farmers, tradespeople, and anyone looking for transport of long length products and a high-volume robust and versatile flat deck trailer.

DESCRIPTION AND SPECIFICATIONS

• DECK SIZE: 6.0m x 2.4m

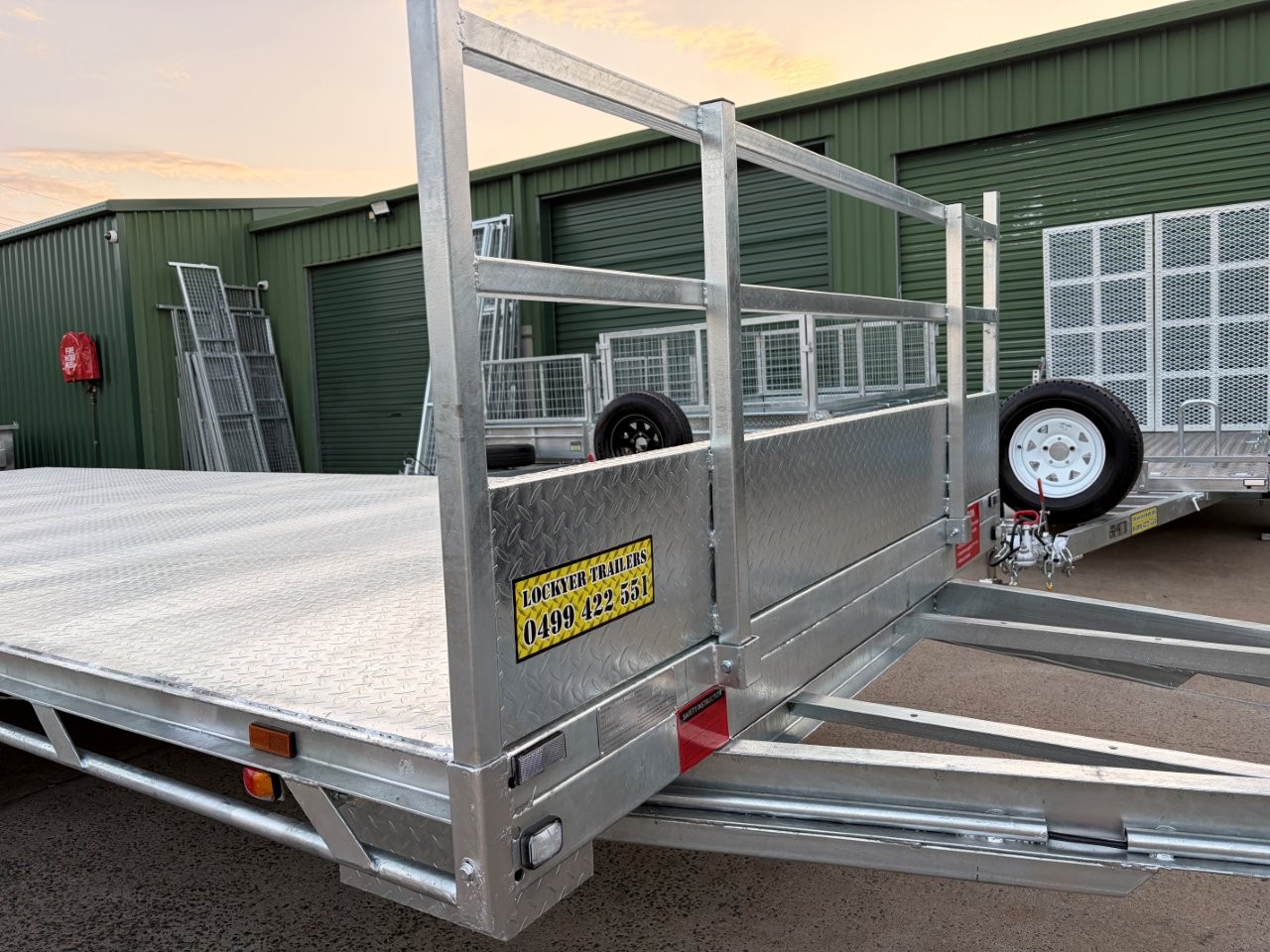

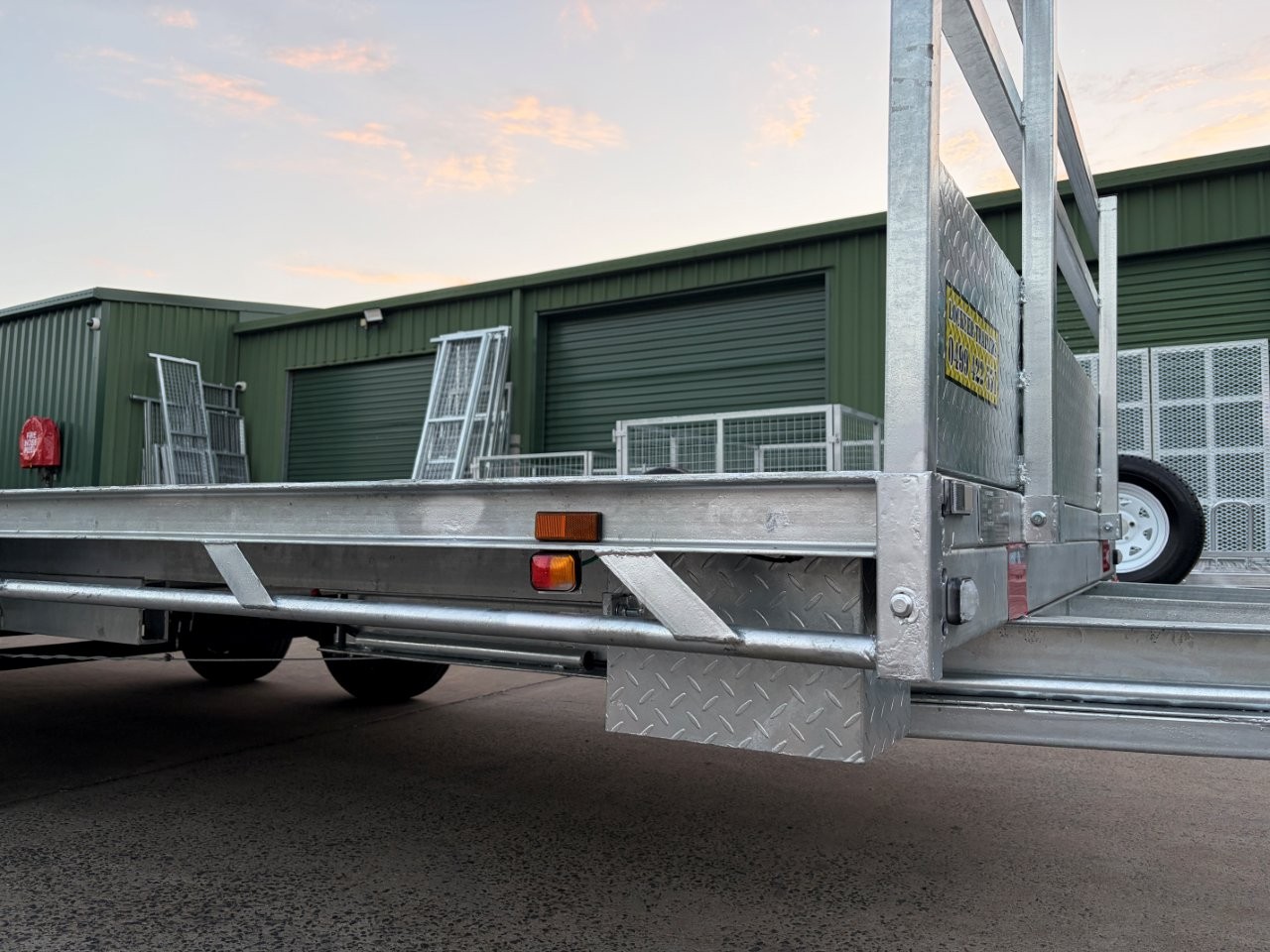

• 900 mm high removable Headboard
• ATM: 4400kg Tare 1380kg Bare trailer. Tri-Axle Payload 3020kg
• 120mm C-Section & 140mm Box Section Structural chassis System

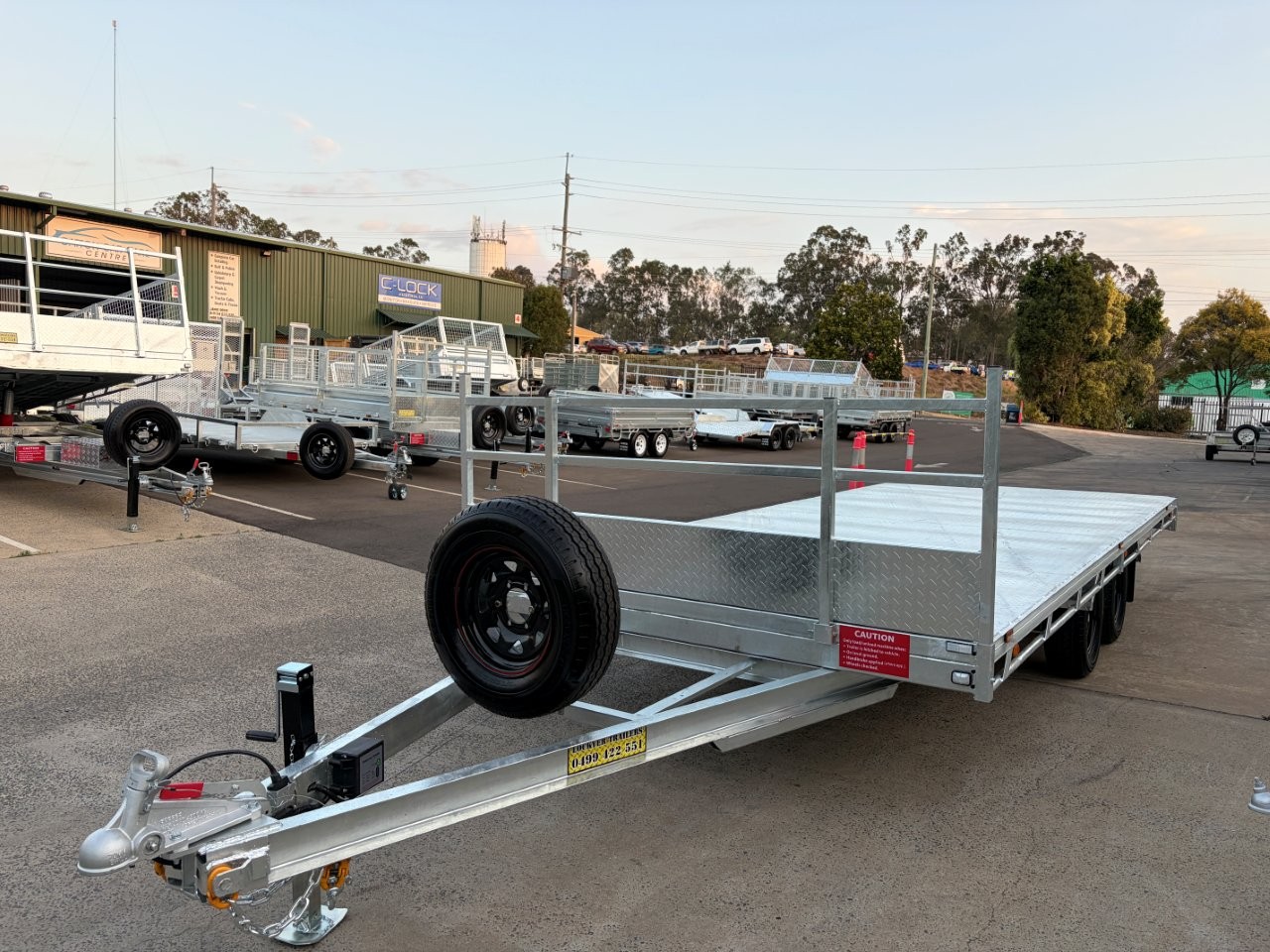

• 2200mm long 120 x 50mm C-Section Drawbar ultra-strong and flexible
• Under body Cross Bars 50 x 50mm
• 80 x 40mm C-Section Side Trailer deck Rails
• Fully Welded Hot Dip Galvanised Heavy-Duty Body and Chassis.

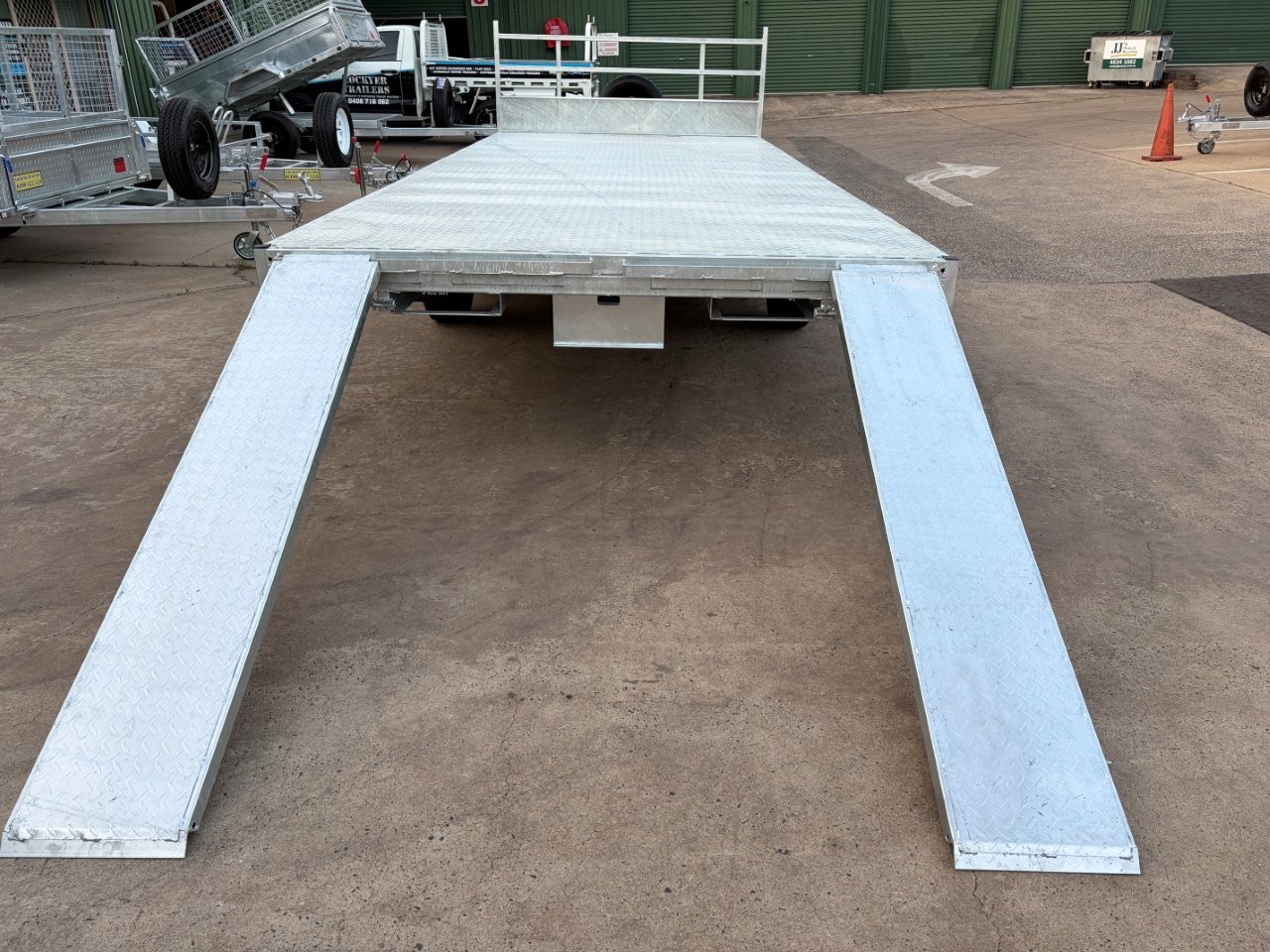

• Heavy Duty slide out Loading Ramps
• Tie Rails full length both sides for straps or chains
• Heavy Duty DEXTER Bearings (Japanese/USA)
• 60sq Axle Solid Each Axle rated at 3000kg each
• Fitted with 4-wheel 12-inch electric brakes.
• Multi-volt 10/30v LED lights with Marker Lights on the sides. ADRs Compliance

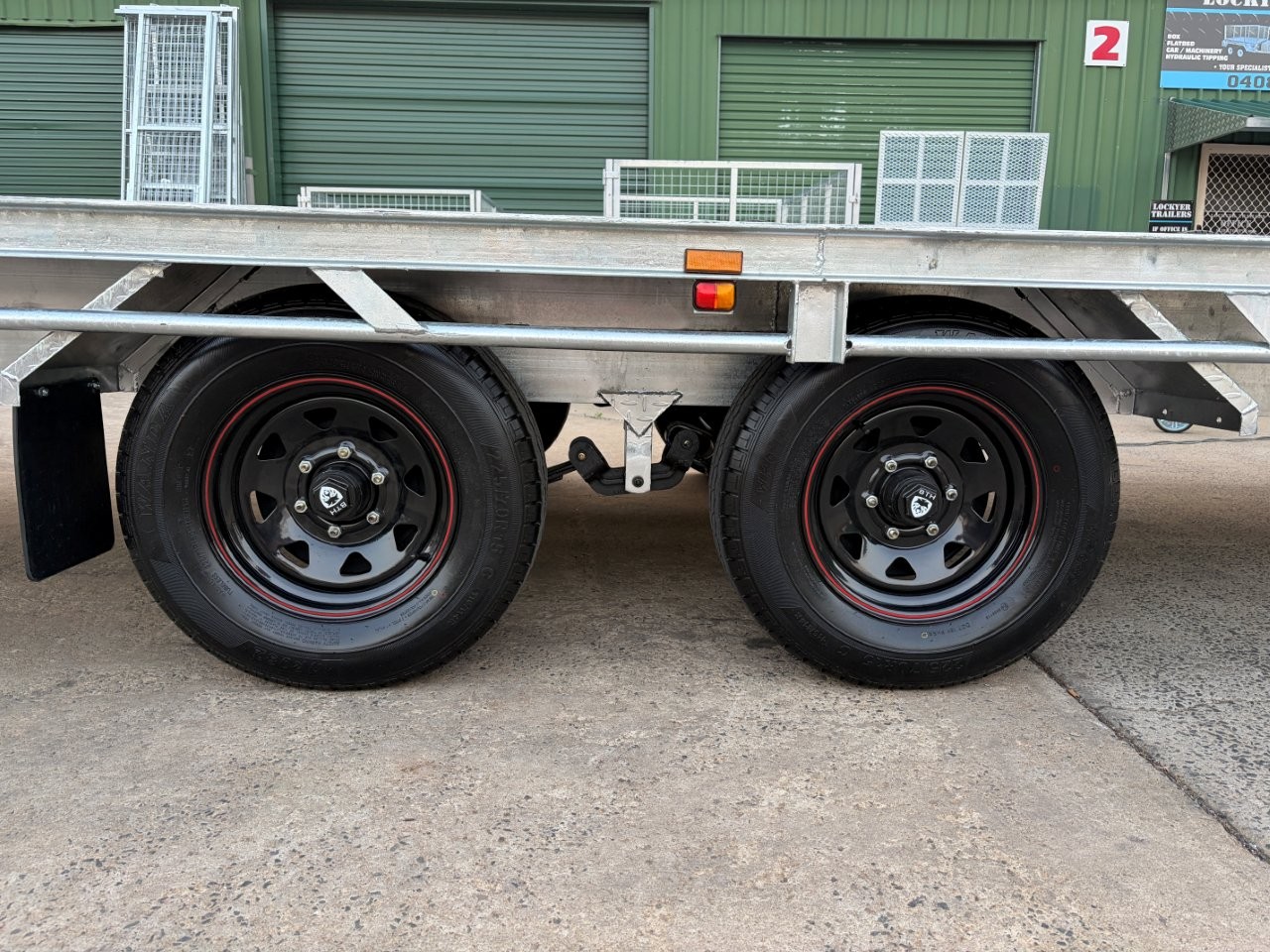

• Load Sharing Rocker Roller Suspension with Heavy Duty 9 Leaf Springs
• Sunraysia 15inch x 6 stud wheel rims.
• New 8 Ply 225/70 R15 Light Truck Tyres
• Fitted with wind Up 7000lb Heavy Duty Jockey Stand
• 4500kg x 70 mm quick release Tow Coupling with handbrake system incorporated.

IMMEDIATE ON-SITE REGISTRATION AVAILABLE
